3 speed Crank Axle Gear Box - Tamiya
BD 12.500

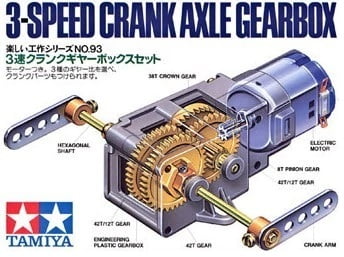

This is a 3 speed crank-axle gearbox kit. Its a cousin of the Twin Motor Gearbox since it is similar to that one but instead has one motor and one extra gear ratio option. This is the most economical of Tamiya's great general purpose gearbox kits. The gearbox housing is made from gray plastic, and features mounting holes compatible with the Universal Plate Set.
The output shafts are steel 3mm hex axles, 10mm long. The included hobby motor runs happily on 3 to 6V and draws up to a few amps. Almost any low voltage motor driver will work nicely with this kit for a small robot build.
Specs
- Operating voltage: 3V - 6V
- Gear ratio options: 17:1, 58:1 and 204 :1
- Free-run motor shaft speed @ 3V: 12300 rpm
- Free-run current @ 3V: 150 mA
- Stall current @ 3V: 2100 mA
- Motor shaft stall torque @ 3V: 0.5 oz in
