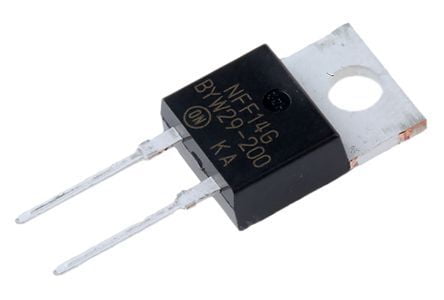

BYW29, Rectifier Diode Switching, 200V, 8A
Non-returnable
BD 2.000
This state−of−the−art device is designed for use in switching power supplies, inverters and as free wheeling diodes.
Features
• 175°C Operating Junction Temperature
• Popular TO−220 Package
• Epoxy Meets UL 94 V−0 @ 0.125 in
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Pb−Free Package is Available*
Choose Quantity
Product Details
Mechanical Characteristics
• Case: Epoxy, Molded, Epoxy Meets UL 94 V−0
• Weight: 1.9 Grams (Approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
• Device Meets MSL1 Requirements
• ESD Ratings: Machine Model, C (> 400 V)
Human Body Model, 3B (> 8000 V)
