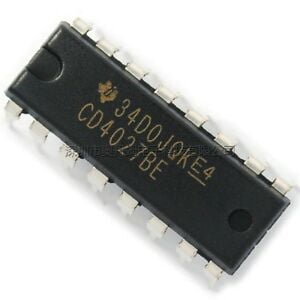

The CD4027BC dual J-K flip-flops are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. Each flip-flop has independent J, K, set, reset, and clock inputs and buffered Q and Q outputs. These flip-flops are edge sensitive to the clock input and change state on the positive-going transition of the clock pulses. Set or reset is independent of the clock and is accomplished by a high level on the respective input. All inputs are protected against damage due to static discharge by diode clamps to VDD and VSS.
Features
Wide supply voltage range: 3.0V to 15V
High noise immunity: 0.45 VDD (typ.)
Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS
Low power: 50 nW (typ.)
Medium speed operation: 12 MHz (typ.) with 10V supply
This is a Thru-Hole Device
Choose Quantity
+ Add to Cart Loading…
Product Details
CD4027 Pinout
We use MC14027 or CD4027 or TC4027 as CMOS-IC, inside JK-Flip-Flop and 16 pins. See pinout below.
Which each pin has a different function as shown below.
