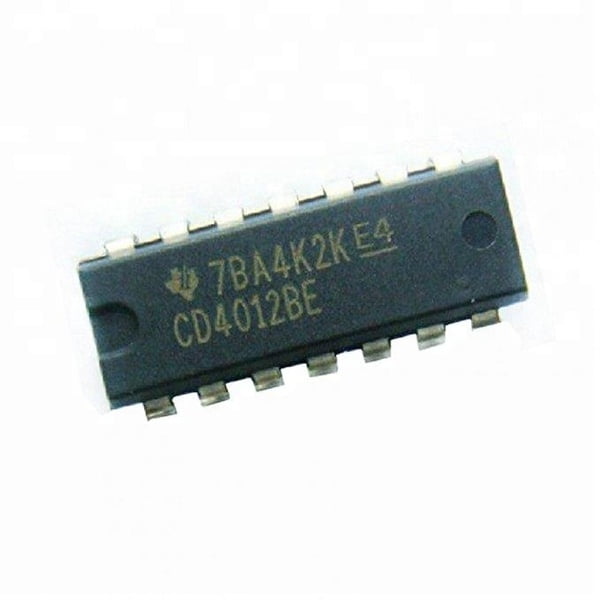

IC CD4012 (Dual 4-Input NAND Gate)
BD 1.400
The NAND gate is monolithic complementary MOS (CMOS) integrated circuits. The N- and P-channel enhancement mode transistors provide a symmetrical circuit with output swings essentially equal to the supply voltage. This results in high noise immunity over a wide supply voltage range. No DC power other than that caused by leakage current is consumed during static conditions. All inputs are protected against static discharge and latching conditions.
Features
- Four Input OR Gate – Dual Package
- Typical Operating Voltage: 5V
- Operating Voltage Range: 3V to 15V
- Power Dissipation: 500mW
- Minimum logic Low voltage @+5V: 0.05V
- Minimum Logic High voltage @+5V: 4.95V
- Propagation Delay @5V : 50ns (maximum)
- Available in 14-pin PDIP, GDIP, PDSO packages
Choose Quantity
Product Details
Specifications:-
| Parameter | Specification |
| Voltage at Any Pin | VSS -0.3V to VDD +0.3V |
| Operating Temperature Range | -40°C to + 85°C |
| Storage Temperature Range (TS) | -65°C to +150°C |
| Power Dissipation (PD): Dual-In-Line | 700 mW |
| Operating Range (VDD) | VSS +3.0V to VSS +15V |
| Lead Temperature (TL) | 260°C |
