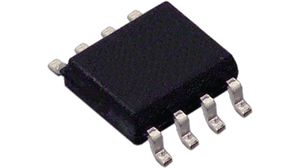

LM293, SMD, Comparator Dual ±18V/36V
BD 3.000
The LM393B and LM2903B devices are the next generation versions of the industry-standard LM393 and LM2903 comparator family. These next generation B-version comparators provide outstanding value for cost-sensitive applications featuring lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM393B and LM2903B can drop-in replace the LM293, LM393 and LM2903, for both "A" and "V" grades. All devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Choose Quantity
Product Details
Features
• NEW LM393B and LM2903B
• Improved specifications of B-version – Maximum rating: up to 38 V – ESD rating (HBM): 2k V – Low input offset: 0.37 mV – Low input bias current: 3.5 nA – Low supply-current: 200 µA per comparator – Faster response time of 1 µsec – Extended temperature range for LM393B – Available in tiny 2 x 2mm WSON package
• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximumrated supply voltage: ±38 V
• Low output saturation voltage
• Output compatible with TTL, MOS, and CMOS
Applications
• Vacuum robot
• Single phase UPS
• Server PSU
• Cordless power tool
• Wireless Infrastructure
• Applicances
• Building Automation
• Factory automation & control
• Motor drives
• Infotainment & cluster
