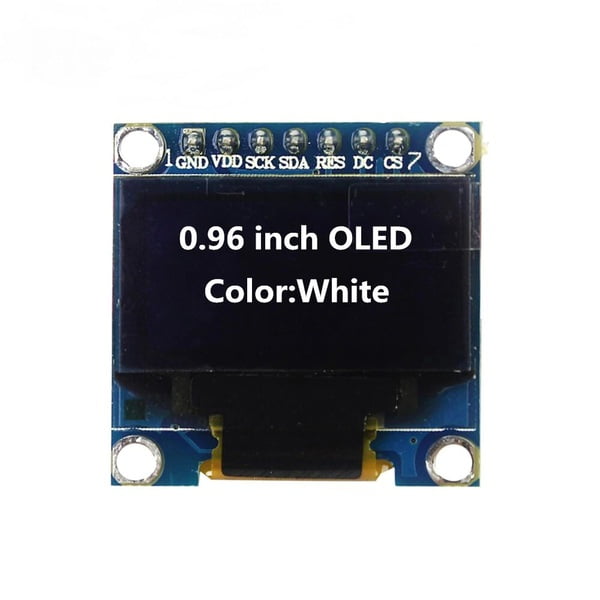

OLED Display Module, White, 0.96", SSD1306, 128x64
Non-returnable
BD 7.500
Product Specification
- Size:0.96 inch
- Number of Pixels: 128x64
- Outline dimension: 27.5x27.8x2.67m
- Active Area: 21.744x10.864mm
- Pixel Pitch: 0.17x0.17mm
- Pixel Size: 0.154x0.154
- High contrast:2000:1
- Voltage：3-5V
- Driver Ic: SSD1306
- Interface: SPI
- the brightness: 80cd/m2
- Wide viewing angle:160
- Operating temperature:-40 to 70
- Storage Temperature:-40 to 85
- Weight: 3g
Notes
The OLED can not be used at a display frame for more than 5 days.If we do it,the brightness ofit will be reduced.
Pin Assignments
- GND:Ground of Logic Circuit
- VDD:Power Supply for Logic
- SCK:Serial clock input
- SDA:Serial data input
- RST:This pin is reset signal input
- DC:This pin is Data/Command control pin
- CS:Chip Select
Choose Quantity
Product Details
- 0.96 inch OLED with White color,128x64 resolution. The driver IC is SSD1306 with SPI interface.
- It is OLED display without backlight and it is low power dissipation .The thickness of galss is only 1.4mm.
- It is highlight.It is full viewing angle and wide operating temperature .Supported voltage: 3V-5V DC
- We have the datasheet of display.It is specification,driver IC,driver code and connection of the hardware.We also have the technical support.
- It supports SPI and IIC together.
