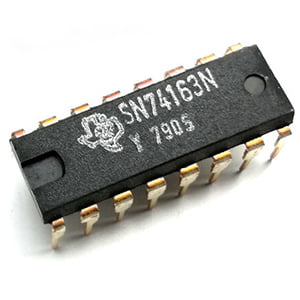

IC 74163 (4 bit Binary Counter)
BD 1.400
74163 is a high speed synchronous modulo-16 binary type counter. The Ic has two type of count enable inputs and a terminal count output which forms a synchronous multistage counter. It has a single circuit of 4 bit counter and it is a UP counter.
Specification- Voltage supply: 4.5-5.5V
- Typical voltage supply: 5V
- Maximum clock frequency: 30MHz
- High speed
- Low power consumption
- TTL compatible
- High noise immunity
Pin Description
Choose Quantity
Product Details
Specifications(typical values under recommended operating conditions, unless specified)
| Parameter | Value | Unit |
|---|---|---|
| Propagation delay, CP to Qn | 17 (74HC) 20 (74HCT) | ns |
| Propagation delay, CP to TC | 21 (74HC) 25 (74HCT) | ns |
| Propagation delay, CET to TC | 11 (74HC) 14 (74HCT) | ns |
| Maximum clock frequency | 51 (74HC) 50 (74HCT) | MHz |
