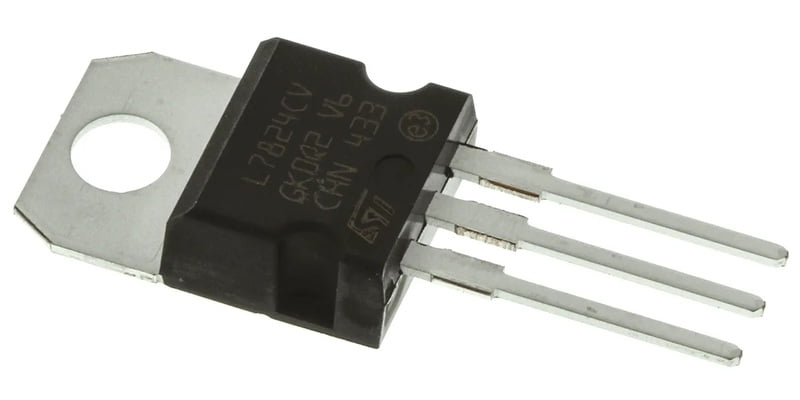

L7824CV (24V Linear Voltage Regulator, 1.5A)
BD 0.500
This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2 % output voltage tolerance
Applications
Power Management
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Output Voltage | 24 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 40 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Width | 4.6mm |
| Height | 9.15mm |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Load Regulation | 480 mV |
| Series | L78xx |
| Line Regulation | 480 mV |
| Quiescent Current | 8mA |
| Length | 10.4mm |
| Typical Dropout Voltage @ Current | 2 V @ 1 A |
