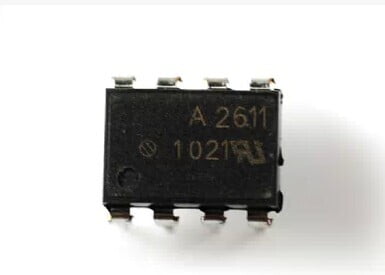

HCPL2611 (Optocoupler Logic-Out Open Collector 1-CH)
BD 3.000
The HCPL2611 single-channel opt couplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a storable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10kV/µs. The HCPL2611 has a minimum CMR of 10kV/µs.
Key Features
- Very high speed – 10 MBit/s
- Superior CMR – 10 kV/µs
- Double working voltage-480V
- Fan-out of 8 over -40°C to +85°C
- Logic gate output
- Storable output
- Wired OR-open collector
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Direction Type | Uni-Directional | |
| Input Type | DC | |
| Lead Finish | Matte Tin | |
| Logic Gate Type | NAND | |
| Max Processing Temp | 260 | |
| Maximum Baud Rate | 10 Mbps | |
| Maximum Forward Current | 50 mA | |
| Maximum Power Dissipation | 100 mW | |
| Maximum Propagation Delay Time | 75 ns | |
| Mounting | Through Hole | |
| Operating Temperature | -40 to 85 °C | |
| Output Type | Open Collector | |
| Pin Count | 8 | |
| Product Dimensions | 9.91 x 6.86 x 3.94 mm | |
| Supplier Package | PDIP Black | |
| Typical Fall Time | 0.012 us |
