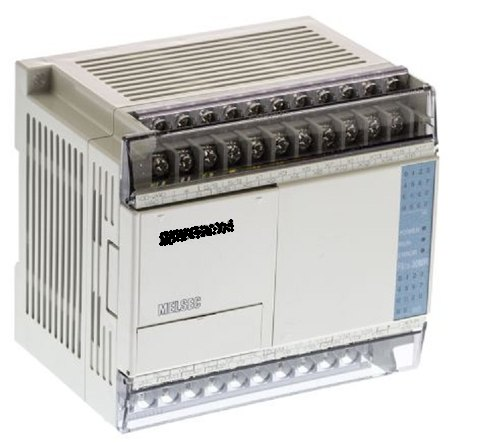

FX1S-30MR-001 PLC Programming Controller
Part of the Melsec FX1S series, the FX1S-30MR-ES/UL is a small inexpensive PLC base unit that is designed to replace relay/contactor control configurations. The series is modular so that you can expand the functionality and I/O range by adding extension I/O and special function modules.
TECHNICAL SPECIFICATION| Part Number: | FX1S-30MR-ES/UL |
| No of Analogue Inputs: | 16 |
| No of Analogue Outputs: | 14 |
| IP/NEMA Rating | IP10 |
| Depth | 49mm |
| Length | 90mm |
| Width | 60mm |
| Mouting Type: | Panel Mount |
| Output Type: | Relay |
| Supply Voltage | 100-240VAC |
Offers powerful control features in an ultra small package. It is ideally suited to smaller I/O applications where future expansion will not be required. In addition to the features already listed, the FX1S also offers the following:
Choice of 10, 14, 20 and 30 fixed I/O sizes
85 applied instructions, 512 auxiliary relays, 64 timers, 32 counters, 256 data registers
2000 step EEPROM program memory (no backup battery required)
Mitsubishi FX1S, FX1N & FX2N Base Units
The FX family of PLC's has a proven development lineage spanning more than 10 years. The three current models, the FX1S, the FX1N and the FX2N, offer a range of processing speeds, number of applied (complex) instructions and options from 10 I/O up to 256 I/O.See the following ranges for suitable digital, analogue and communication expansion modules and programming software.
The following features are common to all three types:
All have 24Vdc inputs which can be configured as sink or source
27 basic instructions
Networking/communications ability using optional RS-232, RS-422 and RS-485 modules
60kHz high speed counter
DIN rail or surface mount
Password security
Real time clock and Run/Stop switch built in
Choice of relay or transistor output models
Relay outputs rated 240Vac or 30Vdc, up to 2A per point max.
Transistor outputs rated 5V to 30Vdc, up to 0.5A per point max.
Program using GX developer FX software stock no. 399-7806
Choice of ac or dc powered models (FX2N is ac only)
ac type supply voltage 100-240Vac +10% -15%, 50/60Hz
dc type supply voltage 24Vdc +20% -15%
In addition, these features are common to the FX1N and FX1S:
0.55 to 0.7μs/basic instruction processing speed
Optional data display stock no. 383-0258 available
Two potentiometers built in for adjusting timers etc
24Vdc 400mA output for sensors etc on ac powered units
