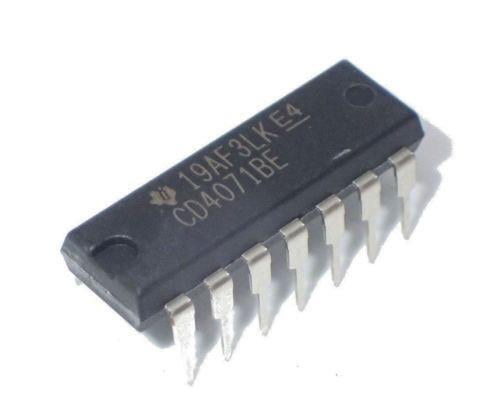

IC CD4071 (Quad 2-Input OR gate)
1.400BD
IC CD4071 (quad 2-input OR gate) is designed to provide a reliable and efficient logic solution for your needs. With a high-quality IC and a durable design, this module is perfect for use in various applications, including electronics and engineering.
Choose Quantity
Product Details
CD4071 Pinout Diagram
This quad 2-input OR gate IC has 14 pins. Three pins are for input and output of each logic gate. We provide a power supply with pin 7(Vss) pin 8 (Vdd). CD4071 is based on CMOS technology. Therefore, it offers a wide range of operating voltage. You can depict the pins of all gates from this pinout diagram.
