JL-286 human body induction Pyroelectric Infrared PIR Motion Sensor with Relay 12VDC
Specifications:
1. Bipolar design: three-wire connection, and the load capacity 100W
2. Automatic sensors: one to switch immediately turned (one event will last turn), who left after the delay off automatically.
3. Relay switch: can withstand high current output, high power load.
4. Automatic random delay (continuous delayed mode): People in the induction scope activity, the switch is always turned off automatically lose if the stationary switch off automatically.
5. Adjustable delay time: 10 seconds -350 seconds
6. Ultra Low Power: Switch own power <0.0088W/h (annual power consumption of <0.077 degrees) than other brands of similar products more energy-saving.
7. Lightning Features: Special lightning protection devices, can effectively prevent lightning and other transient high pressure on the switch damage.
8. Induction: Passive
9. Operating Voltage: DC 12V
10. Inductive mode: passive infrared pyroelectric
11. Quiescent Current: 50uA
12. Sensing Distance: 3 to 5m
13. Load Capacity: Maximum: 100W, inductive loads require half the power usage down
14. Induction Angle: About 120°, 100 ° up and down
15. Load Range: Various types of DC LED lamps, load
16. Ambient Temperature: -20 to +50℃
17. Output Mode: Relay control output DC 12V high level / low level
18. Size: 45 x 30mm, PIR lens diameter: 12mm
Wiring instructions:
Red wire: Power input + 12V
Black wire: Power output -12V
Yellow wire: OUT + 12V power output
Package included:
1 x Human body induction PIR IR pyroelectric infrared sensor module

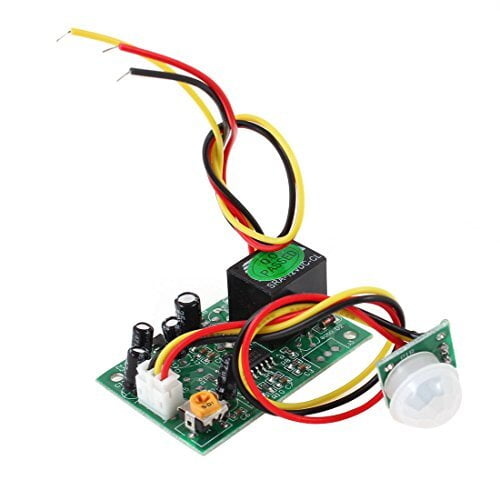

More Detailed Photos:
