Rechargeable Lead Acid Battery, SMF Battery, 6V, 12A
Non-returnable
BD 19.500

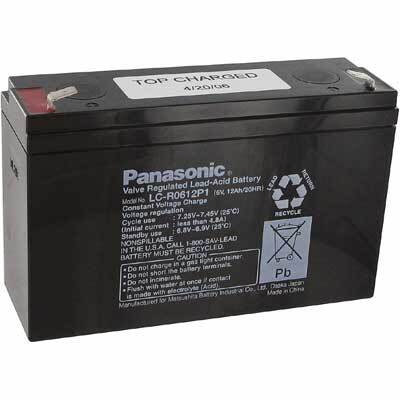

The Panasonic LC-R0612P features membrane technology, so it is completely maintenance-free and unaffected by storage. Optimum for readiness parallel mode. Outstandingly good recovery after deep discharge. Very high capacity. Low internal resistance. High current load capacity. Low self-discharge. UL approved. Applications: Alarm systems, solar plants, UPS-systems, medical technology, measurement technology, emergency lights, modelling, etc.
Usage duration for readiness parallel mode upto 12 Ah: 6 - 9 years, after 17 Ah: 10 - 12 years. Lead batteries with VdS-No. are officially approved by the association of property insurers for use in alarm systems.
- Low inner resistance
- Resistant to high current
- Low self-discharge
Choose Quantity
Product Details
Technical Specifications
Panasonic LC-R0612P1 technical specifications, attributes, and parameters.
| Physical | |
|---|---|
| Mount | External |
| Number of Pins | 2 |
| Weight | 1.950447 kg |
| Technical | |
| Chemistry/Technology | Lead Acid |
| Number of Cells | 1 |
| Output Voltage | 6 V |
| Termination | Faston |
| Voltage Rating | 6 V |
| Voltage Rating (DC) | 6 V |
| Dimensions | |
| Height | 95.504 mm |
| Length | 152.4 mm |
| Width | 51.054 mm |
| Compliance | |
| Lead Free | Contains Lead |
| RoHS | Non-Compliant |
