Antenna for RF 433MHz
Non-returnable
BD 2.500

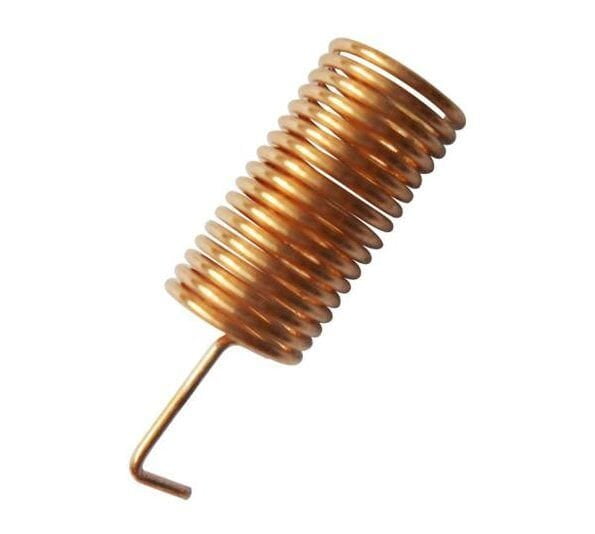

Spring Antenna Set For Wireless 433MHZ RF Transmitter Receiver Remote Control Module
Antenna selection Description
General application mode
For general application mode ,the antenna can directly adopt the general specifications from the market;
The specific information as follows:
The antenna’s core of conductor diameter(including the Antenna skin): 1.0mm,(except the Antenna skin): 0.5mm ;
The wire length of weld end: 17.5mm, the wire length of antenna terminal: 9.5mm;
The diameter of antenna winding (including the Antenna skin):5mm;
The turn number of winding: 15 turns
The diagrammatic drawing:
Choose Quantity
Product Details
The special enhancement mode
The general application mode cannot satisfy if you need farther communication distance, so the special enhancement mode can receive farther communication distance, and the specific information as follows:
433Mhz Antenna
The antenna’s core of conductor diameter (including the Antenna skin): 1.0mm; (except the Antenna skin): 0.35mm
The wire length of weld end: 12mm
The diameter of antenna winding (except the Antenna skin):3.0mm;
The turn number of winding: 26 turns; The length of the winding: 36mm
The diagrammatic drawing:
