4 speed worm gear box H.E. - Tamiya
BD 16.500

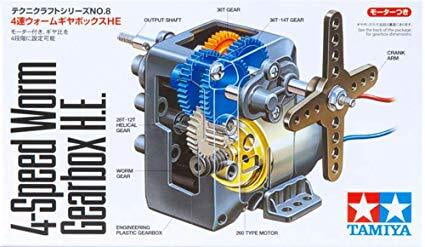

This 4-Speed Worm Gearbox H.E. is of the type which is often used at robotics contests and features a low RPM rate for great torque output. There are four gear ratios (84:1, 216:1, 555.4:1, 1428.2：1) to choose from, with the 1428.2:1 ratio offering an RPM of seven times in one minute. The included gearbox attachment parts can be installed at a choice of two positions. A 4mm dia. drive shaft, three kinds of crank arms, and Type 260 motor included. Separately available Type 130 and Type 140 motors are also compatible.
The Type 260 motor has been used in a variety of applications since its release in 1985. The gearboxes are often used in Robotics contests and enable the possibility of assembly with high and low gear ratios.
- The gearbox features four gear ratios (84:1, 216:1, 555.4:1, 1428.2:1).
- Gear ratio can be easily adjusted by altering the middle and final gear attachment positions.
