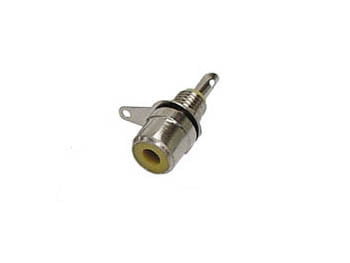

Panel Mount RCA Jack (YELLOW)
BD 0.900
Key Features
- Gold-Plated Contacts
- Thermoplastic Insulation
The RCA Jack Chassis-Mount Socket mounts into a panel up to 0.11" thick and features gold-plated contacts.
Choose Quantity
Product Details
| Connector | RCA Phono Jack |
| Plating | Gold |
| Dielectric Strength | 0.5 kVdc |
| Insulation Resistance | ≥1 Gigaohm |
| Insulation Material | Thermoplastic |
| Lifetime | >1000 Mating Cycles |
| Panel | Maximum Thickness: 0.11" / 3 mm |
| Temperature Range | -13 to 158°F / -25 to 70°C |
