DC 9-15v w1401 Intelligent Digital Thermostat Module Temperature Control (-9 to 99)

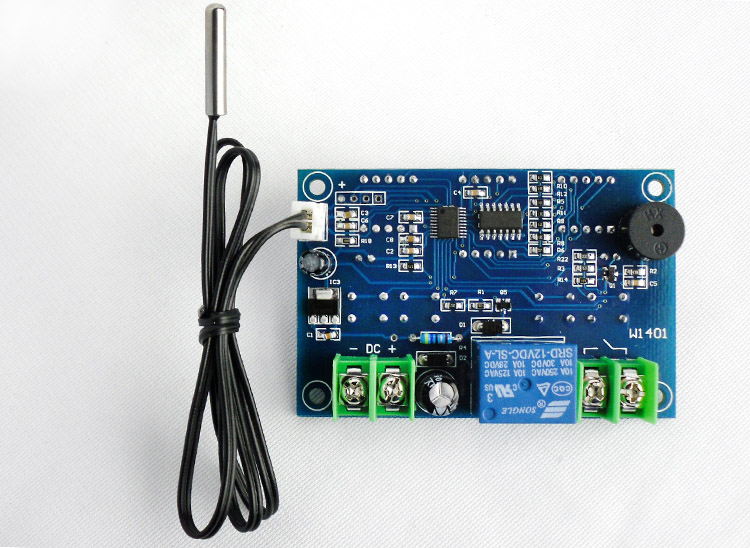

DC9~15V Thermostat Module XH-W1401 Digital Thermostat Module Intelligent Temperature Control Module + NTC Sensor
Feature:
1. The module equipped with a measuring sensor.2. You can set control mode for automatic control.
3. High temperature start-up cooling mode: When setting start temperature value> stop temperature value, when the detected temperature ≥ start temperature, the relay is closed and the refrigeration equipment is working; when the detected temperature ≤ stop temperature, the relay is turned off and the refrigeration equipment stops working.
4. Low temperature start-heating mode: When setting the starting temperature value 5. With indicating light to indicate the working condition.
Specification:
Item Type:Thermostat Module
Temperature Measuring Range:-9~99℃
Control Accuracy:1℃
refresh rate:0.5S
Working Temperature:-10~60℃
Working Humidity:20~85%
Measuring Input:NTC(3950-10K 1%)Waterproof Sensor
Temperature Measuring Accuracy:1℃
Setting Range:-9~99℃
Input Voltage:DC9~15V
Size:78 x 51mm / 3.07 x 2.01in
Output:Relay Output,Capacity 12V10A
Start indicator: The START (red) indicator is on, indicating that the relay is closed and the device is working.
Stop indicator: STOP (green) indicator is on, indicating that the relay is disconnected and the device stops working.

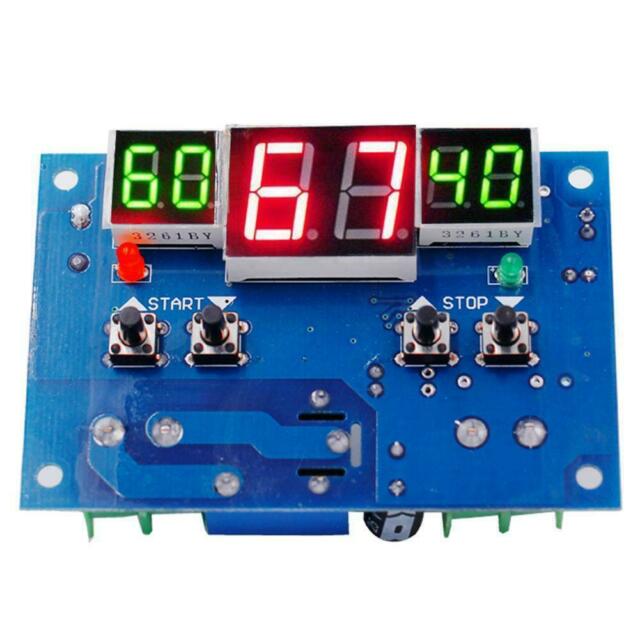

Digital tube: The middle red digital tube shows the current detected temperature, the left green digital tube is the set start temperature, and the right green digital tube is the set stop temperature.
Button:
START "△▽" sets the starting temperature;
STOP "△▽" sets the stop temperature
Mode introduction:
1. High temperature start-up cooling mode: When setting start temperature value> stop temperature value, when the detection temperature ≥ start temperature, the relay is closed, the refrigeration equipment works; when the detection temperature ≤ stop temperature, the relay is disconnected, and the refrigeration equipment stops working.For example: set the starting temperature to 30 ° C, the stopping temperature is 25 ° C, when the detected temperature value ≥ 30 ° C, the relay is closed, the start indicator (red) is on; when the detected temperature value is ≤ 25 ° C, the relay is off, stop indication The light (green) is on.
2. Low temperature start-heating mode: When setting the starting temperature value
Package List:
