8ch 12v relay Module
Non-returnable
BD 12.500

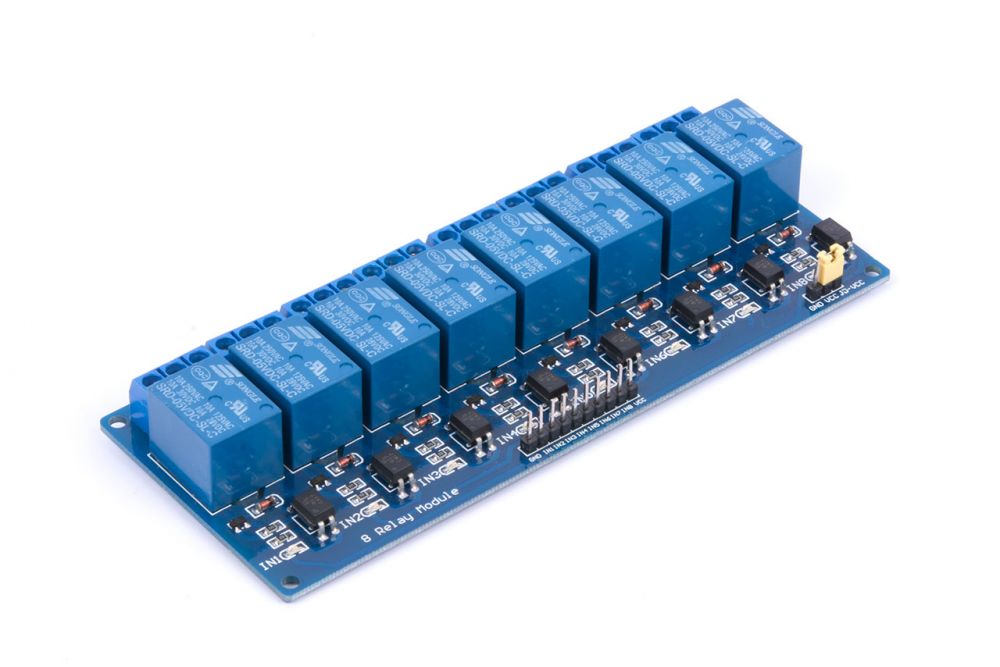

8-Channel 12V Relay Module with Opto Isolated inputs
If you want to switch up to 8 high current / high voltage loads from a microcontroller, this 12V relay board can do it.
It contains 8 x 12V relays rated at 10A/250V AC (DC 30V/10A). Each relay is switched on/off by an opto-isolated digital input that can be connected directly to a microcontroller output pin. It only requires a voltage of approx 1.0V to switch the inputs on but can handle input voltages up to 12V. This makes it ideal for both 5V and 3.3V devices.
Board Size: 14cm x 5.0cm
Choose Quantity
Product Details
Features
- 8x 12V relays
- Each relay rated at 10A / 250V
- Each relay consumes approx 30mA when switched on (at 12V)
- Power supply 5V
- Fully Opto-isolated input signals
- Input signals from 1.0V to 12V
- Individual indicator LEDS for each relay
- Power On LED indicator
- Isolated Input GND
- 4x mounting holes
