Stepper Motor Bipolar 200 Steps/Rev 57×76mm 3.2V 2.8 A/Phase
BD 45.000

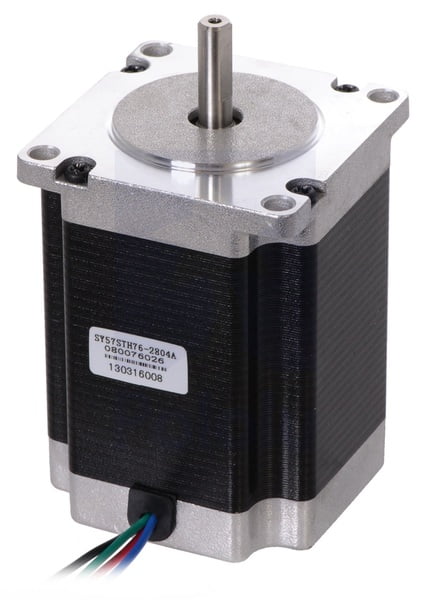

This high-torque hybrid stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 8.6 V, allowing for a holding torque of 14 kg-cm (190 oz-in). The motor has six color-coded wires terminated with bare leads that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the center-tap yellow and white wires can be left disconnected (the red-blue pair gives access to one coil and the black-green pair gives access to the other coil). We recommend using it as a bipolar stepper motor and controlling it with one of our bipolar stepper motor drivers or one of our Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analog voltages, and quadrature encoder) and are configurable over USB with our free configuration utility.
Stepper Motor Applications
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- Printers
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
Choose Quantity
Product Details
Specifications
- Size: 56.4 mm square × 76 mm, not including the shaft (NEMA 23)
- Weight: 1 kg (35 oz)
- Shaft diameter: 6.35 mm (0.25″) “D”
- Steps per revolution: 200
- Current rating: 1 A per coil
- Voltage rating: 8.6 V
- Resistance: 8.6 Ω per coil
- Holding torque: 14 kg-cm (190 oz-in)
- Inductance: 14 mH per coil
- Lead length: 30 cm (12″)
- Output shaft supported by two ball bearings
