40pin Female Header Connector, 2.54mm
Non-returnable
BD 0.600

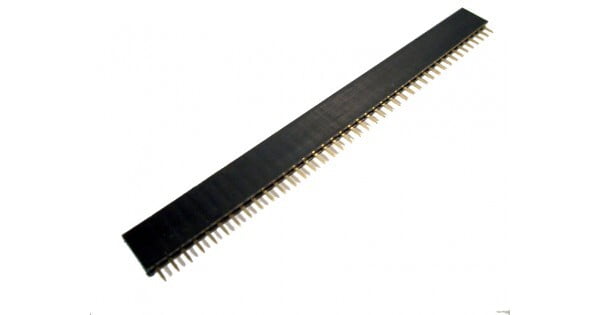

40 Pin 2.54 mm Single Row Female Pin Header
This Break away female header connector is a Single-row, 40-pin (1×40), straight female header strip designed to match 0.1"(2.54 mm) male headers.These 0.1" straight female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards.
Specifications:
Contact spacing: 2.54mm (0.1″)
Number of positions: 40
Number of rows: 1
Termination type: straight
Mounting style: through hole
Choose Quantity
Product Details
Features:
- Pin spacing: 1'' (2.54mm)
- Number of pin: 40

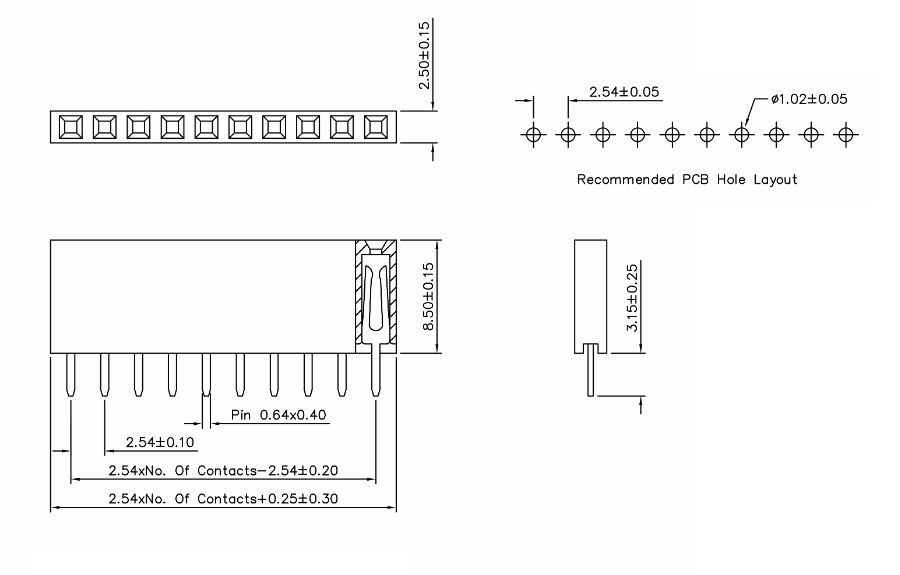

Size:
