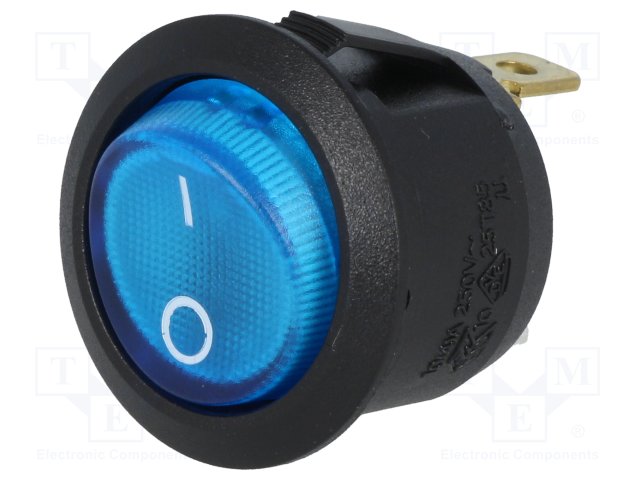

ROCKER SPST 2 Positions OFF-ON 10A/250VAC Blue
BD 1.300
Out of stock
R13-112B-02-BBL-2D-N-2 ROCKER SPST Pos: 2 OFF-ON 10A/250VAC blue neon lamp 230V 50mΩ SCI
Manufacturer: SCI
Type of switch: ROCKER
Number of positions: 2
Contacts configuration: SPST
Switching method: OFF-ON
AC contacts rating @R: 10A / 250V AC
Leads: 4,8x0,8mm connectors
Operating temperature: -20...85°C
Mounting hole diameter: Ø20.2mm
Max. contact resistance:: 50mΩ
Electrical life: 6000 cycles
Manufacturer series: R13-112-AC
Related items: R13-112-12
Panel thickness: max. 3mm
Body material: polyamide
Key button colour: blue
Body colour: black
Illumination: neon lamp 230V
