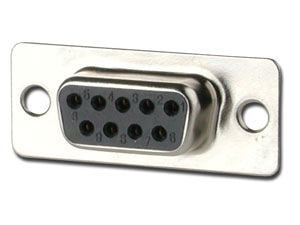

D-SUB CONNECTOR 9 PINS FEMALED-SUB Connector, DB9, 9pins, Female, RS232
Non-returnable
BD 0.500
Make the connection with this 9-Position Female Solder D-Sub Connector. This 9-position female connector can be used for various computer and electronic projects.
Choose Quantity
Product Details
Specification of 9 pin D-sub female connector solder cup type
| P/N | XHY-06-0002 | ||
|---|---|---|---|
|
| Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy | ||
| Contact plating | Gold flash over nickel, 1U”-30U” | ||
| Shell material | SPCC, NICKEL/TIN plated | ||
| Screws | Copper alloy/Ni plated | ||
| Electrical | Working voltage | 300V | |
| Contact current rating | 5A (customized) | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric strength | 500V AC rms for 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin | ||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN | ||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C |
