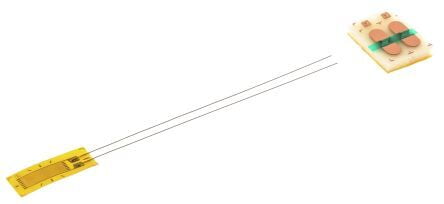

Strain Gauge 120Ω Foil
4.000BD
Strain gauge 120Ω foil is designed to provide a reliable and efficient way to measure strain. With a high-quality strain gauge and a durable design, this component is perfect for use in various applications, including electronics, electrical systems, and telecommunications.
Choose Quantity
Product Details
Specifications:
Resistance: 120 ohms (resistance of the strain gauge refers to the resistance value measured by the strain gauge at room temperature, without installation and without force.)
Base size: 6.6*3.4mm
Wire grid size: 3.0*2.44mm
Lead specification: 3-5 cm long enameled wire
Resistance to nominal tolerance: 120 ± 3 Ω
Resistance to average tolerance: ≤ 0.5Ω
Applicable temperature: normal temperature (-30 ° C -60 ° C)
Sensitivity coefficient and dispersion: 2.1±1%
Room temperature strain limit: 20000 um/m
Mechanical hysteresis: 1.2 um/m
Room temperature insulation resistance: 10000MΩ
Resistance: 120 ohms (resistance of the strain gauge refers to the resistance value measured by the strain gauge at room temperature, without installation and without force.)
Base size: 6.6*3.4mm
Wire grid size: 3.0*2.44mm
Lead specification: 3-5 cm long enameled wire
Resistance to nominal tolerance: 120 ± 3 Ω
Resistance to average tolerance: ≤ 0.5Ω
Applicable temperature: normal temperature (-30 ° C -60 ° C)
Sensitivity coefficient and dispersion: 2.1±1%
Room temperature strain limit: 20000 um/m
Mechanical hysteresis: 1.2 um/m
Room temperature insulation resistance: 10000MΩ
