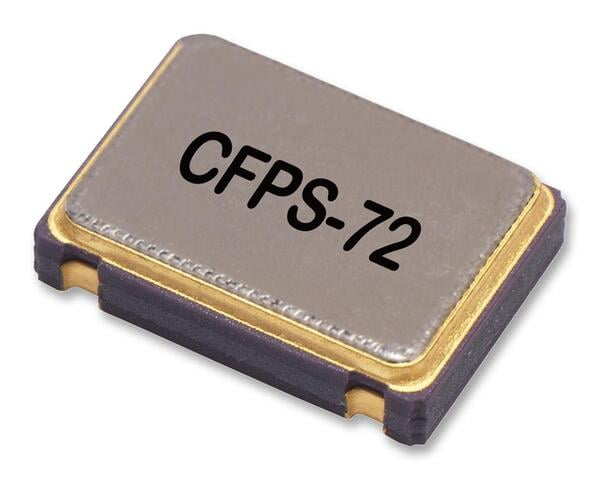

Crystal Clock Oscillator 48MHz CFPS-72
Non-returnable
BD 2.400
The CFPS-72 series standard Crystal Oscillator works at a frequency range of 48.0MHz with frequency stability of ±50PPM. It is in a ceramic package with a seam sealed metal lid, hermetically sealed.
- REACH compliant
- HCMOS Output
CFPS-72 Crystal Oscillators
CFPS-7S series crystal clock oscillator. These IQD brand SMD's are cased in ceramic with a hermetically sealed metal lid and feature a good standard of environmental properties in relation to shock and vibration. They are available in a standard 7 x 5mm size and have wide frequency parameters.
Crystal Oscillators 7x5mm Ceramic case
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Output Frequency | 48MHz |
| Frequency Stability | ±50ppm |
| Package Type | 7x5mm SMD |
| Output Level | HCMOS, TTL |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Height | 1.4mm |
| Dimensions | 7.2 x 5.2 x 1.4mm |
