AC Fan, 230VAC, 175x70mm, 60dBA, Ball Bearing

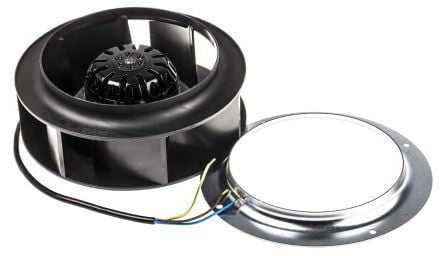

The ebm-papst single inlet centrifugal fan has an airflow of 445m³/h and a supply voltage rating of 230VAC. It is an ideal solution for a wide range of applications and is also ideally suited for intake suction use. Also, ebm-papst centrifugal fans and blowers, specifically those used for intake suction using backwards-curved blades, do not require a scroll housing. This adds to the ease of use and versatility. It has 175mm wide and 69mm deep.
Supplied with a capacitor and an inlet ring.

Features and Benefits

Class B insulation
Material of impeller is PA plastic 6, Fibreglass-reinforced
Noise level is 61dB
Ball bearing

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

IP20 rated
CCC certified
GOST certified

Approvals

UL; CSA
