Switch Round 2P, 6A/250VAC, RED, ON-OFF-ON
Non-returnable
BD 1.000

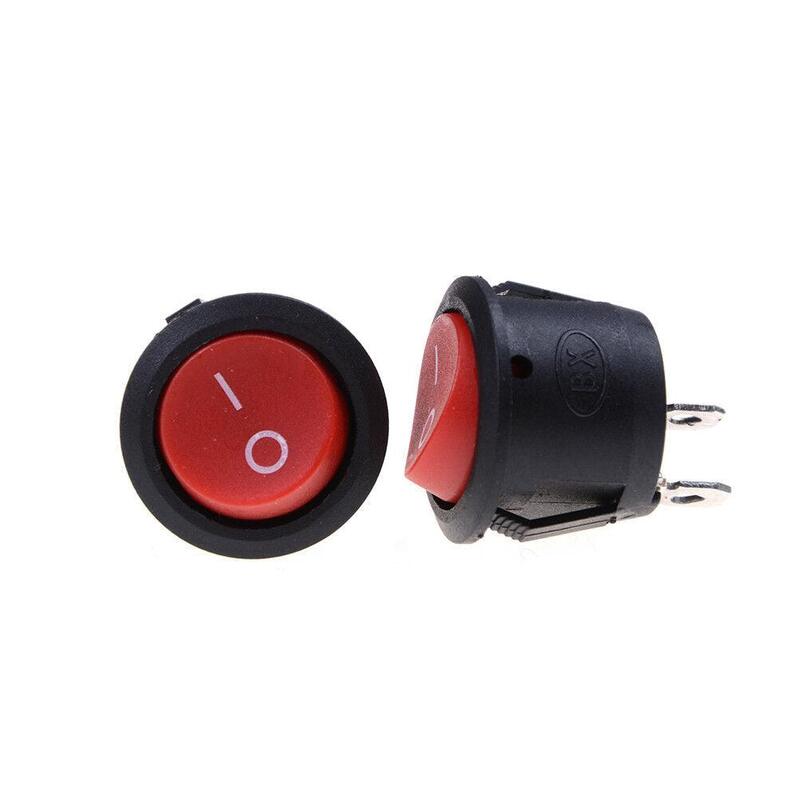

Round Rocker Switch, 6A, 250V AC DPST, 220V LED Light In Car,Red Push Button Switch
Choose Quantity
Product Details
Rating: 10 to 125 VAC; 6 A 250 VAC.
Ambient temperature: -13.0 ° F ~ 185.0 ° F.
Contact resistance: <35 MΩ
Insulation resistance:> 500 VDC 1000 MΩ Minute.
Dielectric strength:> 1500VAC, 1 minute
Operating temperature: -13.0 ° F ~ 185.0 ° F.
Mechanical life:> 50,000 cycles
Electrical life:> 10,000 cycles
Item type: switches.
Model Number: KCD1-8-201N, KCD1-8-201N.
Certification: CE, CQC.
Features: with LED.
Switch type: rocker switch.
Current: 10 A.
Material: plastic.
Rating: 10 to 125 VAC; 6 to 250 VAC.
Operating temperature: 25 degree ~ +85 degree.
Function: on and off.
Red color.
Terminal type: solder terminal
Ambient temperature: -13.0 ° F ~ 185.0 ° F.
Contact resistance: <35 MΩ
Insulation resistance:> 500 VDC 1000 MΩ Minute.
Dielectric strength:> 1500VAC, 1 minute
Operating temperature: -13.0 ° F ~ 185.0 ° F.
Mechanical life:> 50,000 cycles
Electrical life:> 10,000 cycles
Item type: switches.
Model Number: KCD1-8-201N, KCD1-8-201N.
Certification: CE, CQC.
Features: with LED.
Switch type: rocker switch.
Current: 10 A.
Material: plastic.
Rating: 10 to 125 VAC; 6 to 250 VAC.
Operating temperature: 25 degree ~ +85 degree.
Function: on and off.
Red color.
Terminal type: solder terminal
