1N4004 Diode 400V, 1A

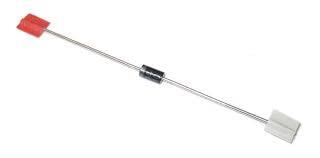

A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.
For 1N4004 Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. It can withstand reverse voltage peak up to 400V.
Applications of Diode
- Can be used to prevent reverse polarity problem
- Half Wave and Full Wave rectifiers
- Used as a protection device
- Current flow regulators
2D representation (DO-41)
1N4004 is a rectifier diode with the maximum current carrying capacity 1A and it withstand peaks up to 30A.
Pin Configuration
Pin No. | Pin Name | Description |
1 | Anode | Current always Enters through Anode |
2 | Cathode | Current always Exits through Cathode |
Features- Average forward current is 1A
- Non-repetitive Peak current is 30A
- Reverse current is 5uA.
- RMS reverse voltage is 280V
- Peak repetitive Reverse voltage is 400V
- Available in DO-41 Package
Note: Complete Technical Details can be found at the 1N4004 datasheet given at the end of this page.
