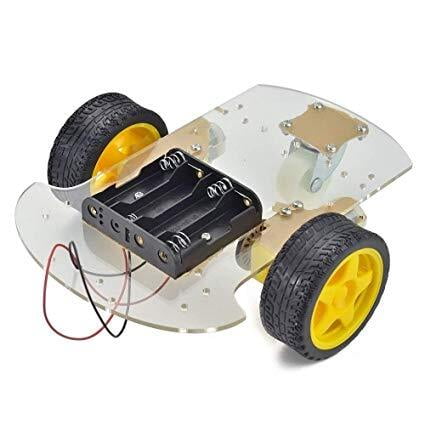

Car Chassis ZK-2

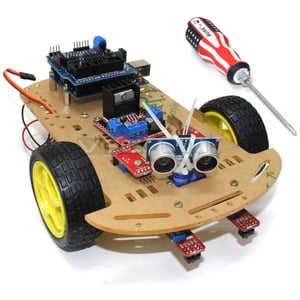

It is very easy. With a car platform, add some micro-controller (such as Arduino) and sensor modules, and program it.
Then you made your own robot car.
Features:
Mechanical structure is simple, it is easy to install.
This car is the tachometer encoder
Two on the 5th battery compartment, convenient power throughout the system in a switch, while starting and stopping.
No add-ins is very convenient, the entire system highly integrated
Can be used to measure distance, speed
Specifications:
Outline Size: 135x135x80mm/5.31*5.31*3.14″
The round acrylic plate diameter: 130mm/5.11″
Another acrylic plate size: 135x75mm/5.31*2.95″
Quantity:1 set
Note: It is DIY kit, not finished product. Motor power supply is 3V~6V. All the parameter above is tested without load
Package Included:
1 x Round Acrylic Plate
1 x Acrylic Baseboard
2 x 65mm Wheel
2 x Universal Wheel
2 x Gear Motor
4 x “T”mode Fixed Motor Bracket
16 x M3X10mm Screw
8 x M3 Nut
4 x M3X12+6mm Copper Cylinder
4 x M3X30mm two-way Copper Column
