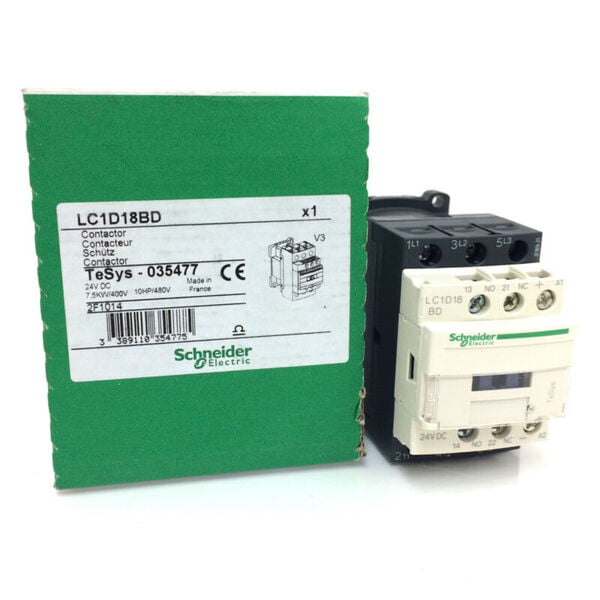

LC1D18BD Schneider Contactor 24VDC 5.5kW
BD 26.500
3 Pole Contactors, DC Controlled Built-in coil suppression 3 N/O poles Auxiliary contact configuration one N/O, one N/C Operating time closing 12 to 22 ms Operating time opening 4 to 19 ms
Choose Quantity
Product Details
Product Information
| Maximum Operating Temperature | : | +60°C |
| Contact Current Rating | : | 18 A |
| Series | : | LC1D |
| Minimum Operating Temperature | : | -5°C |
| Coil Voltage | : | 24 V dc |
| Length | : | 77mm |
| Width | : | 45mm |
| Depth | : | 93mm |
| Number Of Auxiliary Contacts | : | 2 |
| Normal State Configuration | : | 3NO |
| Range | : | TeSys D |
| Power Rating | : | 7.5 kW |
| Contact Voltage Rating | : | 690 V ac |
| Number Of Poles | : | 3 |
| Terminal Type | : | Screw |
| Rohs | : | RoHS Certificate of Compliance |
