7-segment C.C RED 3-Digits 14.2mm
BD 2.400

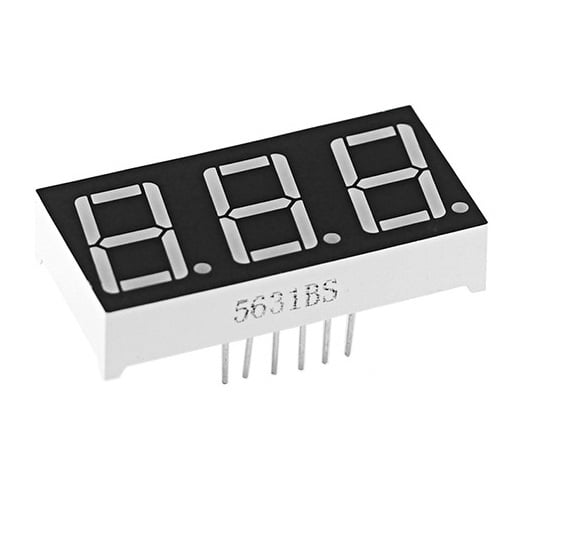

Kingbright Triple Digit 7-segment Display
A range of triple-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colors.
Low current operation
Excellent character appearance
Grey face with white segments
Easy mounting on P.C. boards or sockets
Categorized for luminous intensity
Mechanically rugged
RoHS compliant
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Display Type | 7-Segment |
| Number of Characters | 3 |
| LED Colours | Red |
| Number of Segments | 7 |
| Dominant Wavelength | 630 nm |
| Character Width | 8mm |
| Character Height | 14.2mm |
| Common Connection | Cathode |
| Mounting Type | Through Hole |
| External Dimensions | 37.6 x 19 x 8.1mm |
| External Depth | 8.1mm |
| External Height | 19mm |
| External Width | 37.6mm |
| Luminous Intensity | 73 mcd |
| Colour of Face | Grey |
| Power Dissipation | 75mW |
| Minimum Operating Temperature | -40°C |
| Forward Voltage | 2 V |
| Decimal Orientation | Right Side |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Forward Current | 30mA |
