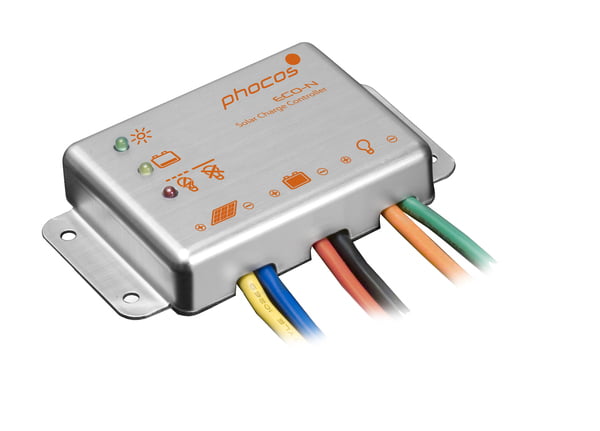

Solar Charge Controller 12V, 10A
BD 29.500
The Eco solar charge controller is designed for smaller solar systems with deep discharge protection. The ECO controller is equipped with a serial control for optimum battery charging and has a completely electronically protected circuit.
- Electronically regulated charging mode: boost, main and float charge
- Deep discharge protection
- PWM series regulation (PV panel is not short-circuited)
- Integrated temperature compensation
- Fully electronically protected against: panel surge voltage, wrong polarity (panel or battery), overload and short circuit at load
- Three LED indications: Charge Status, SOC, LVD, Overload/Short Circuit
- IP68 protection
Choose Quantity
Product Details
| T | 51 mm |
|---|---|
| Height | 16 mm |
| Width | 87 mm |
| Matching rechargeable battery | SLA , Lead-acid , Lead acid membrane |
| Control type | PWM |
| Nominal voltage | 12 V |
| Charging current (max.) | 10 A |
| Current load | 10 A |
| Own power consumption | <4 mA |
| Temperature range | -40 - +60 °C |
| Weight | 110 g |
|---|
