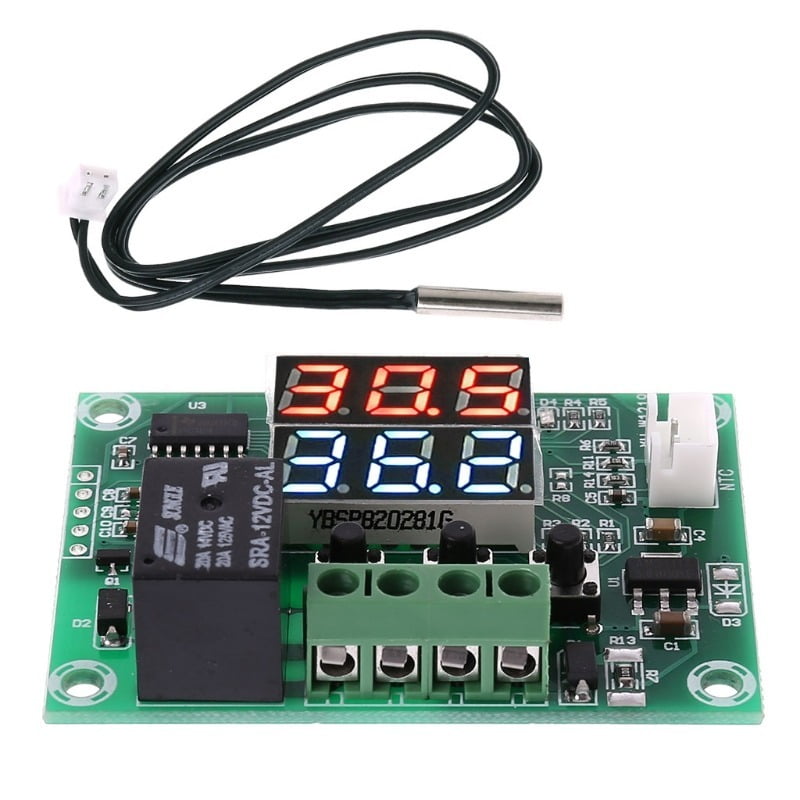

XH-W1219 LED Digital Thermostat Temperature Controller
Probe Dual LED Display Red + Green
Product Introduction:
1. Model: XH-W1219
2. Control Range: -50~110 Celsius
3. Control Precision: 0.1 Celsius
4. Measuring Input: NTC10K waterproof sensor L="0.5m
5. High Temperature Alarm: -49~110 Celsius
6. Input Voltage: DC 12V
7. Output Type: relay output 10A (max)
8. Return Difference Setting: 0.1~30 Celsius
9. Delay Starting: 0-10min
10. Temperature Calibration: -10~10 Celsius
11. Size: 60*43*16mm
Function Introduction:
P0.Temperature Control Mode: when first use this product; if it is used to heating, please set H,
if used to cooling, please set C
P1.Return Difference Setting: long press SET key entering into internal setting, choose P1 setting; then press SET
key to achieve return difference value setting
P2:Temperature Calibration: this function is for temperature calibration. If detection temperature and actual
temperature is different, then users can apply this function to calibrate
P3:Delay Start: this function is for compressor cooling
P4:Set High Temperature Alarm Value: when actual temperature is higher than this value,
screen will flash and sound an alarm
Package Includes
1 x XH W1219 LED Digital Thermostat Temperature Controller Module
1 x Waterproof NTC Sensor Probe
