A3967 Stepper Motor Driver

Name: A3967 Stepper Motor Driver
SKU: A39/Ste/Mot/Dri
Price: 6.5 BHD
Availability: InStock

Non-returnable

BD 6.500

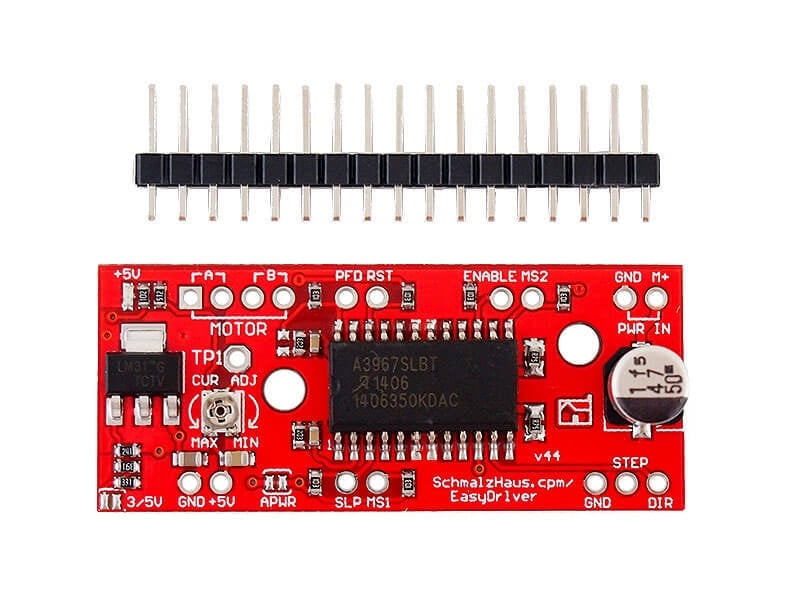

This A3967 Stepper Motor Driver For Arduino is the latest version of EasyDriver v44 co-designed with Brian Schmalz. It provides greater flexibility and control over your stepper motor compared to the older versions.

It is a simple to use stepper motor driver, compatible with most microcontrollers that can output a digital 0 to 5V pulse (0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). The module requires a 7V to the 30V power supply for a motor. The module has an onboard voltage regulator for the digital interface that can be set to 5V or 3.3V.

Connect a 4-wire stepper motor and a microcontroller and you’ve got precision motor control! EasyDriver drives bi-polar motors and motors wired as bi-polar. i.e. 4, 6 or 8 wire stepper motors. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the micro-stepping resolution. The sleep and enable pins are also broken out for further control.

Choose Quantity

+ Add to Cart

Product Details

Features:

1. MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)

2. Compatible with 4, 6, and 8 wire stepper motors of any voltage

3. Adjustable current control from 150mA / phase to 750mA / phase

4. Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds

5. Distribution pin, not welded, this module is open source
