MBR4045PT Dual Common Cathode Schottky Rectifier
Non-returnable
BD 4.000
The MBR4045PT is a Rectifier Diode with moulded plastic case, metal silicon junction, majority carrier conduction and lead-free pure tin-plated terminals. The rectifier diode features solderable terminals as per MIL-STD-750, method 2026 standard, low power loss and high efficiency. Polarity marked on the body.
- High current capability
- Low forward voltage drop
- High surge capability
- 31V Maximum RMS voltage
- 45V Maximum DC blocking voltage
- 1.2°C/W Maximum typical thermal resistance
Choose Quantity
Product Details
FEATURES
• Guardring for overvoltage protection
• Lower power losses, high efficiency
• Low forward voltage drop
• High forward surge capability
• High frequency operation
• Solder Dip 260 °C, 40 seconds
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in low voltage, high frequency rectifier of switching mode power supplies, free-wheeling diodes, dc-to-dc converters or polarity protection application.
MECHANICAL DATA

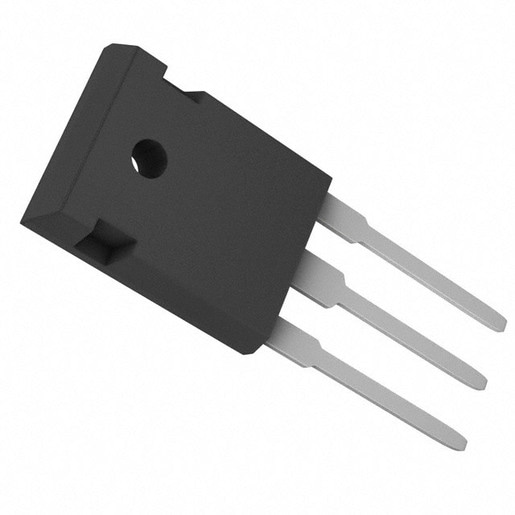

Case: TO-247AD (TO-3P) Epoxy meets UL 94V-0 flammability rating
Terminals: Matte tin plated (E3 Suffix) leads, solderable per J-STD-002B and JESD22-B102D
Polarity: As marked
Mounting Torque: 10 in-lbs maximum
