PIC16F872 (8 Bit Microcontrollers)

BD 6.000

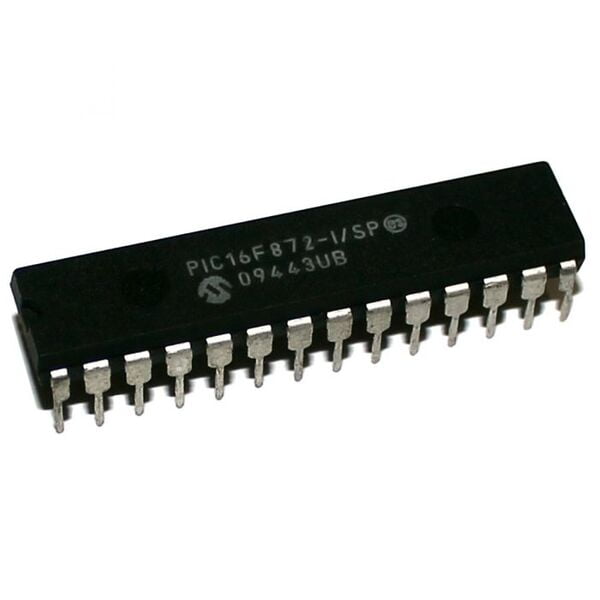

The PIC16F872-I/SP is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size and 5-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.

35 (14-bit wide) easy instructions to learn
8 level hardware stack
1 (9-bit) file select register
Hardware interrupt handling
In-Circuit Serial Programming™ (ICSP™)
Power on reset (POR)
Power-up timer (PWRT)
Oscillator start-up timer (OST)
Programmable code protection
Power saving SLEEP mode

In-circuit debugging via two pins
64bytes of EEPROM data memory

Choose Quantity

+ Add to Cart

Product Details

Key Features

Only 35 single word instructions to learn
All single cycle instructions except for program branches, which are two-cycle
Operating speed: DC - 20 MHz clock input/DC - 200 ns instruction cycle
2K x 14 words of FLASH Program Memory
128 bytes of Data Memory (RAM)
64 bytes of EEPROM Data Memory
Pinout compatible to the PIC16C72A
Interrupt capability (up to 10 sources)
Eight level deep hardware stack
Direct, Indirect and Relative Addressing modes
Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Programmable code protection
Power saving SLEEP mode
Selectable oscillator options
In-Circuit Serial Programming™ (ICSP™) via two pins
Single 5V In-Circuit Serial Programming capability
In-Circuit Debugging via two pins
Processor read/write access to program memory
Low power, high speed CMOS FLASH/EEPROM technology
Wide operating voltage range: 2.0V to 5.5V
Fully static design
Commercial, Industrial and Extended temperature ranges
Tape and Reel Packaging

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
