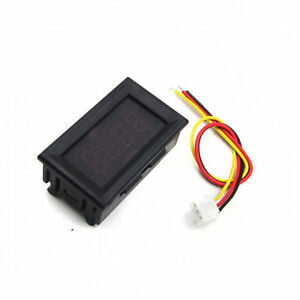

DC 0-33V 4 Bit Digital Voltmeter Panel Red

BD 8.000
Supply voltage: DC7-30V
Measuring voltage: DC 0-33V
Accuracy: 0.02V
Input impedance: About 100Kohm
Overload: 4 times of the range
Display: 4 digits 0.56 "LED digital tube
Display color: Red
Refresh rate: about 300mS / times
Working temperature: -40 °c - 85 °c
Digital Tube: 61mm x 29mm x 17.5mm
Circuit board: 58mm x 26mm
Features: Ultra-small, Two-wire Are imported MCU design, software filtering Using automatic SMD process, Comes with two regulator chip, stable Built-in protection against reverse, reverse will not burn, over range is displayed "0" For monitoring automobile, car batteries, motorcycle battery voltage Installation fault self-test: 1. Digits do not shine. Check if the red wire and black wire reversely connected; Check if the voltage of red wire is 7-24V. 2. The voltmeter display “0”. Check if the green wire connects well; Check if the voltage is “0” . 3. Voltmeter highest bit shows "1". Check if the green wire connects well. 4. Digital bounce. Check if the voltage of red wire (connect to power supply) is stable. Check if three wires is good connected. Package include: 1x Digital Voltmeter
