ULN2003 Stepper Motor Driver
Non-returnable
BD 5.500

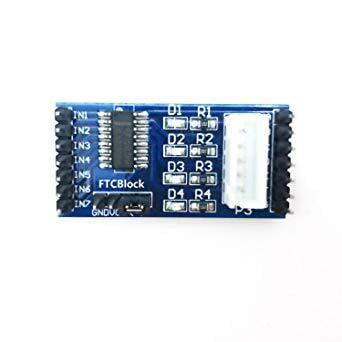

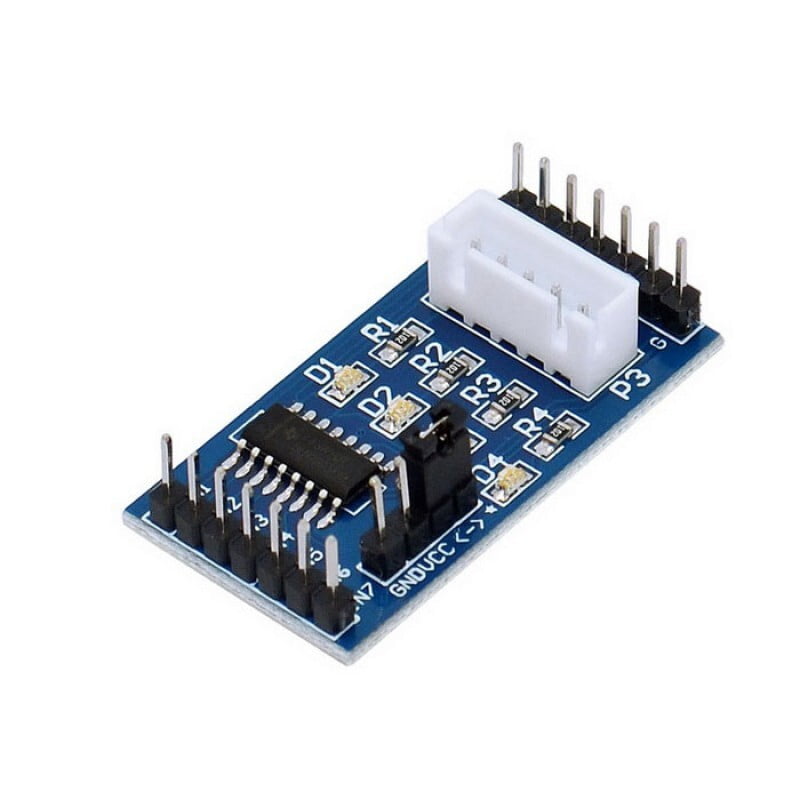

ULN2003 Stepper Motor Driver Board is to use the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v).It's easy to use Arduino or other development platform to drive the stepper motor by this diver board.
Supply Voltage: 5V (Supplied motor suitable for 5V applications)
Max Output Current: 0.5A (Single Output)
4 LED indicators
Size: 40.5mm x 21.3mm
Stepper Motor Cable Length (approx.): 24cm
Holding Torque: 0.3kg/cm
Diameter: 28mm
Step Angle: 5.625 degrees
Reduction Ratio: 1/64
Max Output Current: 0.5A (Single Output)
4 LED indicators
Size: 40.5mm x 21.3mm
Stepper Motor Cable Length (approx.): 24cm
Holding Torque: 0.3kg/cm
Diameter: 28mm
Step Angle: 5.625 degrees
Reduction Ratio: 1/64
Choose Quantity
Product Details
DDITIONAL INFORMATION
| Discontinued | Yes |
|---|---|
| Link Wiki | No |
| EWeLink Support | No |
| Module Type | Driver |
| Weight | 20 g |
| Model | IM120723012 |
| Board Size | 3.5 x 3.6 x 1.6cm |
| Version | 1.0 |
| Operation Level | Digital 5V |
