Fast Connector, 3 pins, 400v, 32A
Non-returnable
BD 0.600

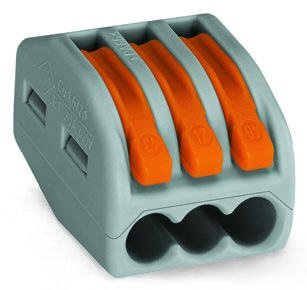

The 222-413 from Wago is a 3 conductor terminal block with cage clamp connection. This connector allows for solid, stranded and fine stranded cables to be connected together without the need for any tools. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.
- Compact splicing connector
- Solid & Stranded Conductors: 0.08-2.5mm2, Fine Stranded Conductor: 0.08-4mm2
- Current Rating: 20A
- Voltage Rating: 600V
- W: 17mm x H: 14.5mm x D: 20.5mm
- Maximum Operating Temperature: 105°C
- Grey
- Side entry wiring type
Applications
Industrial, Communications & Networking, Lighting, Security, Signalling, HVAC
Choose Quantity
Product Details
| Voltage Rating | 250V AC |
|---|---|
| Wire Range | 0.75-2.5mm² |
| Number of Ways | 3 |
| Termination Method | Spring Lever |
| Current Rating | 32A |
