CDDFN10 3324P SMD Diode TVS Array
Non-returnable
BD 0.500
The Model CDDFN10-3324P device provides ESD, CDE and EFT protection for high-speed data ports, meeting IEC 61000-4-2 (ESD) requirements. The Transient Voltage Suppressor array, protecting up to four data lines, offers a Working Peak Reverse Voltage of 3.3 V and a Minimum Breakdown Voltage of 4.5 V.
The DFN10 packaged device has an ultra-low typical capacitance of only 0.04 pF between I/O lines. This allows it to be used for protecting sensitive components used on on the PCB, helping to maintain matched impedances of the high-speed data lines. high-speed interfaces. The small footprint of the device allows for flow-through routing
Choose Quantity
Product Details
Manufacturer: Bourns Inc.
Packaging: Cut Tape (CT)
Part Status: Active
Type: Steering (Rail to Rail)
Unidirectional Channels: 4
Voltage - Reverse Standoff (Typ): 3.3V (Max)
Voltage - Breakdown (Min): 4.5V
Voltage - Clamping (Max): @ Ipp7.5V
Current - Peak Pulse (10/1000µs): 4A (8/20µs)
Power - Peak Pulse: 30W
Power Line Protection: Yes
Applications: HDMI
Operating Temperature: -55°C ~ 85°C (TJ)
Mounting Type: Surface Mount

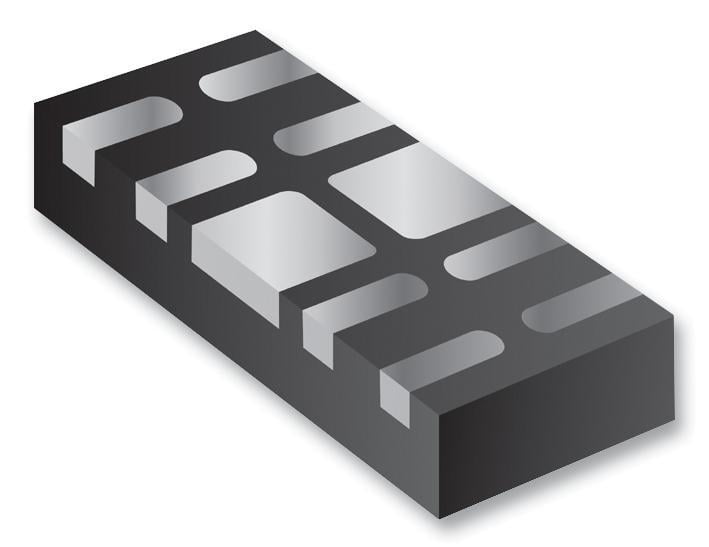

Package / Case: 10-UFDFN
