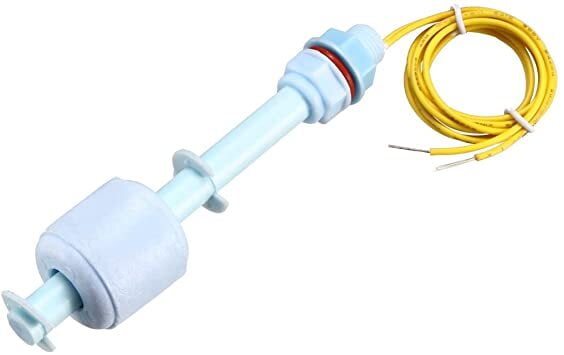

Float Switch M10 100mm Vertical Liquid Water Level Sensor
BD 4.500
A float switch is a device used to sense the level of liquid within a tank. The switch can actuate a pump, indicator, alarm, or other device.
It can be easily converted from normally open to normally closed by reversing the float.
It can be easily converted from normally open to normally closed by reversing the float.
Characteristics:
This float switch is simple structure, easy liquid level installation. It does not have a complex circuit, it does not bother, as long as the selection of materials, liquid, pressure or temperature can be used in any environment.
Light weight and simple working principle, high reliability.
The float level switch is widely used in electronic, electrical, chemical, water treatment, drainage and other types of alarm and living level control.
This float switch is simple structure, easy liquid level installation. It does not have a complex circuit, it does not bother, as long as the selection of materials, liquid, pressure or temperature can be used in any environment.
Light weight and simple working principle, high reliability.
The float level switch is widely used in electronic, electrical, chemical, water treatment, drainage and other types of alarm and living level control.
Choose Quantity
Product Details
Specifications:
Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size (Approx): 24 x 23.7 mm (L*D)
Thread Dia (Approx): M10
Body Total Length: 100mm
Cable Length: 40cm
Color: Blue; Yellow
Net Weight: 37g
Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size (Approx): 24 x 23.7 mm (L*D)
Thread Dia (Approx): M10
Body Total Length: 100mm
Cable Length: 40cm
Color: Blue; Yellow
Net Weight: 37g
