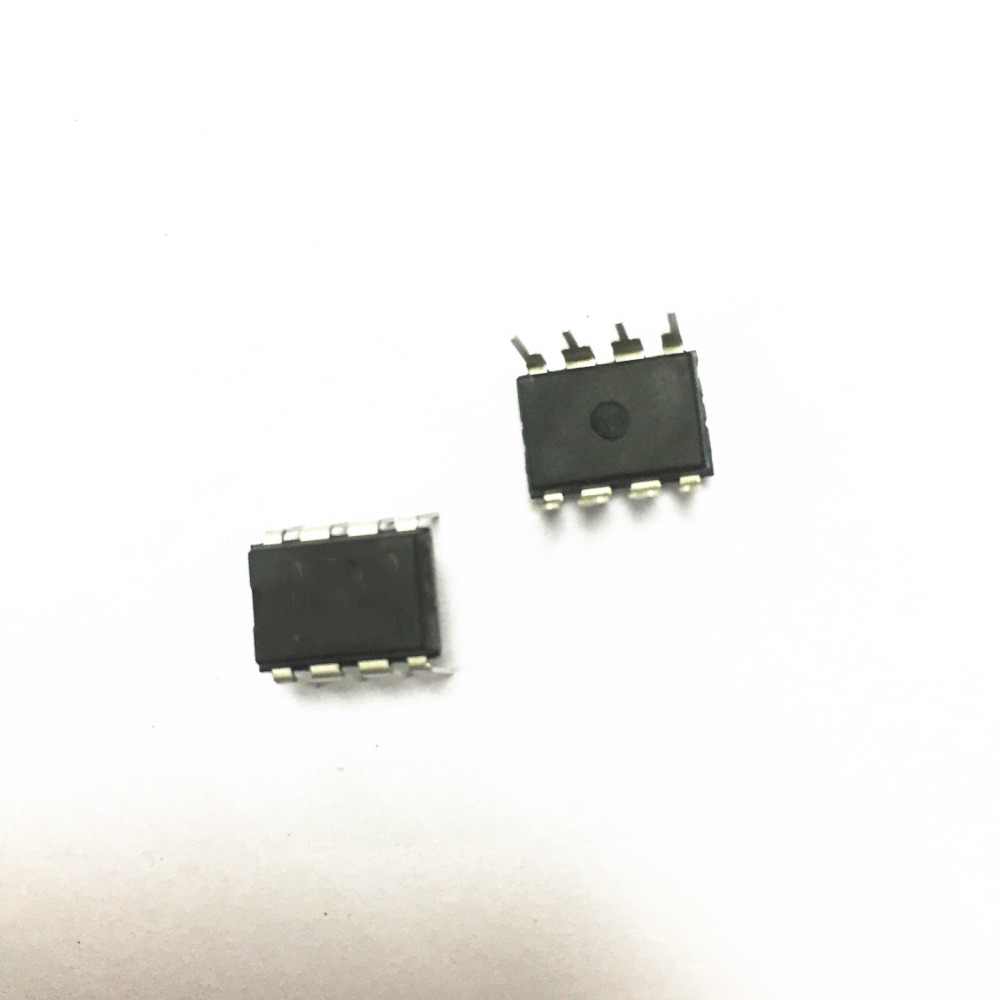

A4506 IC Optocoupler
Non-returnable
BD 2.800
The HCPL-4506 intelligent power module (IPM) and gate drive optocouplers contains an AlGaAs LED. The LED is optically coupled to an integrated high gain photo detector. Minimized propagation delay difference between devices makes this optocoupler an excellent solution for improving inverter efficiency through reduced switching dead time.
An on chip 20 kohm output pull-up resistor can be enabled by shorting output pins 6 and 7, thus eliminating the need for an external pull-up resistor in common IPM applications. Specifications and performance plots are given for typical IPM applications.
Applications
• IPM isolation
• Isolated IGBT/MOSFET gate drive
• AC and brushless DC motor drives
• Industrial inverters
Choose Quantity
Product Details
Features
• Performance specified for bommon IPM applications over industrial temperature range: -40°C to 100°C
• Fast maximum propagation delays tPHL = 480ns tPLH = 550ns
• Minimized Pulse Width Distortion PWD = 450 ns
• 15 kV/µs minimum common mode transient immunity at VCM = 1500 V
• CTR > 44% at IF = 10mA
• Safety approval: UL Recognized -3750 V rms / 1 min. for HCPL-4506/0466/J456 -5000 V rms / 1 min. for HCPL-4506 Option 020 and HCNW4506 CSA Approved IEC/EN/DIN EN 60747-5-2 Approved -VIORM = 560 Vpeak for HCPL-0466 Option 060 -VIORM = 630 Vpeak for HCPL-4506 Option 060 -VIORM = 891 Vpeak for HCPL-J456 -VIORM = 1414 Vpeak for HCNW4506
