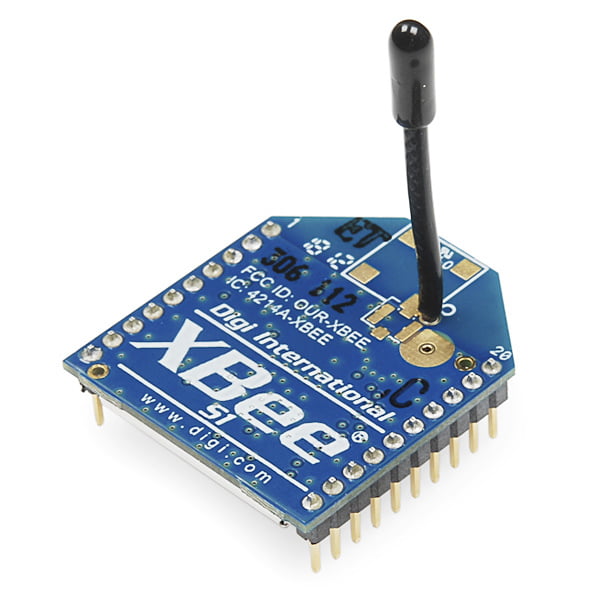

XBee 1mW Wire Antenna S1
Non-returnable
BD 23.500
This is the very popular 2.4GHz XBee module from Digi. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.
Features
- 3.3V @ 50mA
- 250kbps Max data rate
- 1mW output (+0dBm)
- 300ft (100m) range
- Wire antenna
- Fully FCC certified
- 6 10-bit ADC input pins
- 8 digital IO pins
- 128-bit encryption
- Local or over-air configuration
- AT or API command set
Choose Quantity
Product Details
Key Features:
Outdoor range up to 300 feet (90 m) line of sight
Indoor range up to 100 feet (30 m)
Data rate up to 250 Kbps
2.4 GHz frequency band (accepted world-wide)
- Dimensions: 27mm x 24mm x 9mm
