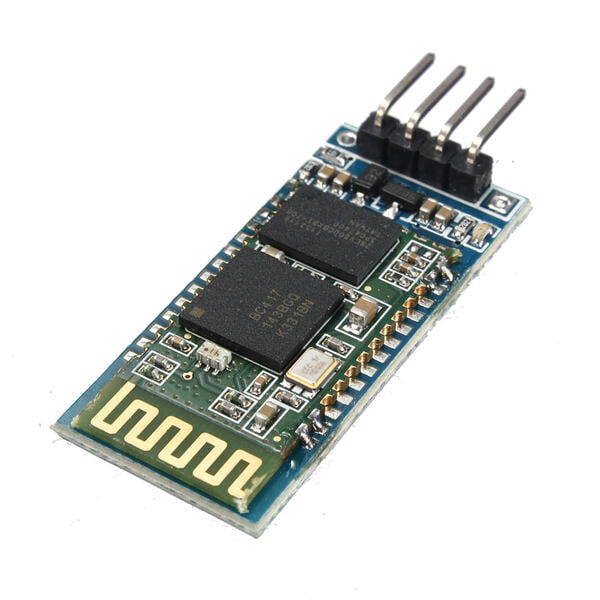

HC-06 Bluetooth Module
BD 6.900
HM-06 is a Bluetooth module designed for establishing short range wireless data communication between two microcontrollers or systems. The module works on Bluetooth 2.0 communication protocol and it can only act as a slave device. This is cheapest method for wireless data transmission and more flexible compared to other methods and it even can transmit files at speed up to 2.1Mb/s.
HC-06 uses frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and to have full duplex transmission. The device works on the frequency range from 2.402 GHz to 2.480GHz.
Choose Quantity
Product Details
Features:Package Included:
- Works with any USB Bluetooth adapters.
- Default Baud Rate: 9600,8,1,n.
- Built in antenna.
- Coverage up to 30ft.
- Bluetooth version: V2.0+EDR
- Operating voltage: 3.3V
- Default Baud Rate: 9600,8,1,n.
- Signal coverage: 30ft
- Item size: 4.3 * 1.6 * 0.7cm
- Item weight: 3g
- Package size: 9 * 3 * 1cm
- Package weight: 8g
- Commercial Series: Bluetooth module board Series
- With LED indicator light, use 150mA and 3.3V regulation chip.
- With VCC.GND.TXD.RXD pindfor the Bluetooth
- Compatible with bluetooth master module”.slave module”or master-slave(whole) module.
- Input voltage: 3.3~6V
- Size: 1.55cm*3.98cm
Note: Input power supply = 3.3~6V, Prohibit more than 7V
