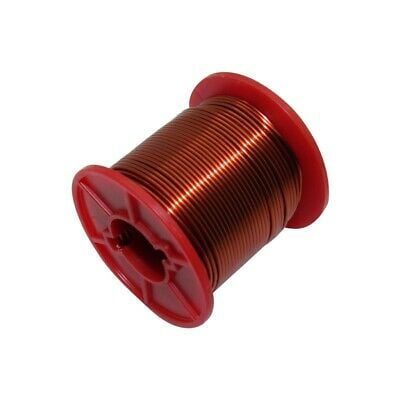

Coil wire single coated enamelled 0.4mm 0.25kg
Non-returnable
BD 12.000
Out of stock
SynWire V 180 is a thermal class H enamelled copper wire which can be directly soldered. The most outstanding characteristics of the wire is the possibilty of efficient and safe contacting of the wire ends by quick and exact soldering at solder bath temperatures from 390 °C upwards without prior mechanical removal of the insulation film. This type of enamelled copper wires fulfills the technical requirements of modern winding techniques and can be well impregnated and cast with compounds in accordance with the manufacturer's instructions. The excellent thermal resistance characteristics offer protection when wire-wound coils have to be compound cast and when subject to short-time overloads. The chemical resistance to aggressive liquid and gaseous mediums is limited, and therefore we recommend that you carry out compatibility tests before using this enamelled copper wire. SynWire V 180 can be easily welded and mechanically connected. Sophisticated process technology and process setting ensure easy mouldability, good elongation plus constant and good insulation characteristics of these wires. The chemical resistance to aggressive, fluid or gaseous media is limited; therefore, compatibility tests are recommended prior to application.
Product Details
Highlights
· Solderable enamelled round cu.wire
· Insulated with polyurethane
· Class 180
Application
· Contactors,
· magnetic coils,
· relays,
· small motors,
· transformers,
· inverters
Standards
· IEC / DIN EN 60317-51
· IEC / DIN EN 60317-0-1
· NEMA MW 82-C
· UL approved
