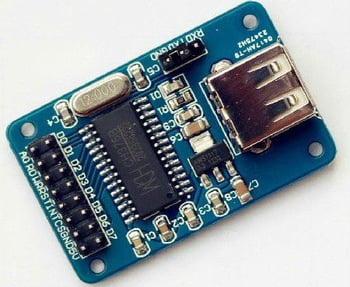

CH376S USB Read/Write module for Arduino
11.500BD
CH376 is common a USB bus interface chip, with 8 bit data bus and reading,
writing and chip select lines and interrupt output, can easily attached to the system
bus of the single chip microcomputer /DSP/MCU/MPU controller. In the USB host mode,
CH376 also provides a serial communication mode, through the serial input, serial output
and interrupt output connected with the MCU /DSP/MCU/MPU.
writing and chip select lines and interrupt output, can easily attached to the system
bus of the single chip microcomputer /DSP/MCU/MPU controller. In the USB host mode,
CH376 also provides a serial communication mode, through the serial input, serial output
and interrupt output connected with the MCU /DSP/MCU/MPU.
Specifications:
Size: 48mm x 28mm
Color: Blue
Package includes:
1 x CH376S U Disk Read-write Module USB Flash Disk For Arduino
Choose Quantity
Product Details
Features:
100% Brand new and high quality!
CH376S with 8-bit data bus and read, write, chip select control lines and interrupt output
can be easily attached to the system bus of the microcontroller/DSP/MCU/MPU controller.
USB host mode, CH375 also provides serial communication via serial input, serial output,
and interrupt output monolithic/DSP/MCU/MPU connected.
2×8 connector, easy with the MCU mount.
Jumper selectable, can work in parallel or serial mode.
USB status indicator.
Onboard 3.3V LDO 1117, provides 800mA current.
5V power supply is powered from the target board.
12MHZ crystal.
100% Brand new and high quality!
CH376S with 8-bit data bus and read, write, chip select control lines and interrupt output
can be easily attached to the system bus of the microcontroller/DSP/MCU/MPU controller.
USB host mode, CH375 also provides serial communication via serial input, serial output,
and interrupt output monolithic/DSP/MCU/MPU connected.
2×8 connector, easy with the MCU mount.
Jumper selectable, can work in parallel or serial mode.
USB status indicator.
Onboard 3.3V LDO 1117, provides 800mA current.
5V power supply is powered from the target board.
12MHZ crystal.
