Digital Multimeter Pen, AC Voltage, Capacitance, Continuity, DC Voltage, Resistance
BD 21.500

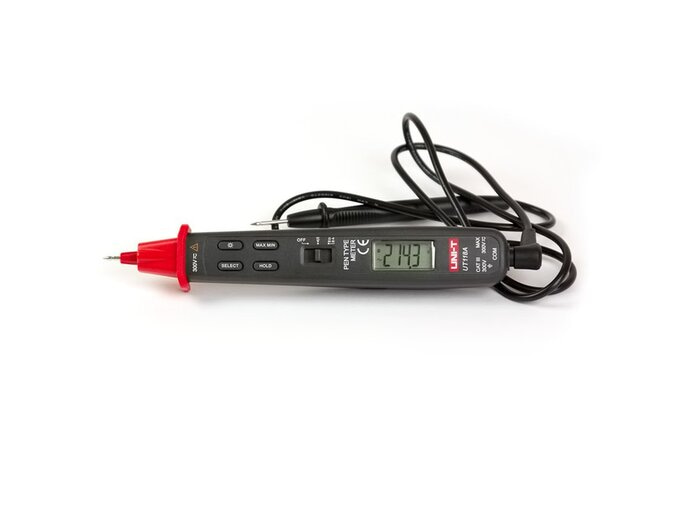

UNI-T UT118A is a digital multimeter which can measure AC/DC voltage, resistance, capacitance and can be used for continuity and diode tests.
Specification
General | Model: UT118A |
|---|---|
Dimensions and Weight | Product weight: 0.0900 kg Package weight: 0.1710 kg Product size (L x W x H): 18.00 x 2.70 x 2.10 cm / 7.09 x 1.06 x 0.83 inches Package size (L x W x H): 26.40 x 10.10 x 2.40 cm / 10.39 x 3.98 x 0.94 inches |
Package Contents | Package Contents: 1 x UNI-T UT118A Original Pen Type LCD Digital Multimeter, 1 x Test Lead, 1 x Chinese Manual |
Choose Quantity
Product Details
Features:
Count Count: 3000
Auto Range: √
Diode: √
Auto Power Off: About 10 minutes
Buzzer Continuity: √
Low Battery Indication: √
Data Hold: √
Max Mode: √
Min Mode: √
LCD Backlight: √
Flashlight : √
DCV input impedance: ≥ 10 MΩ
Specifications:
Model: ut118 a
Voltage (V) DC: 3 V / 30 V / 300 V ± (1% + 3)
AC Voltage (V): 3 V / 30 V / 300 V ± (1% + 4)
Resistance (Ω): 300ω / 3 Kω / 30 KΩ / 300 Kω / 3 mω ± (1% + 3)
Capacitance (F): 4 nF / 30nf / 300nf / 3μf / 30μf / 300μ ± (3% + 5)
General characteristics:
Power: 3V li-mno2 cion battery cell (included)
LCD Size: 28mm * 14mm
Product Color: Red and Gray
Product Net Weight: 90g
Package Size: 27 * 10 * 3cm / 10.6 * 3 , 9 * 1.2 in
Package Weight: 139g / 4.9oz
Package List:
1 * UNI-T ut118 to Digital Multimeters
1 * Lead Test
