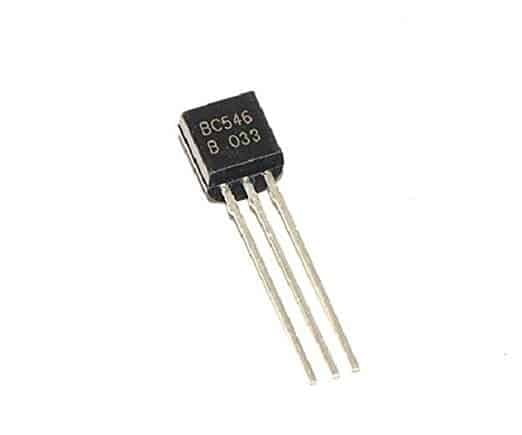

BC546 (NPN)

BC546 (NPN Transistor)

BD 1.500
Complementary PNP Transistors

BC556, A733 and BC560



Where to use BC546 Transistor

The BC546 is a popular NPN Amplifier transistor that can be found in many audio pre-amplifier designs. The Transistor has a gain value of 800 with a transition frequency of 150MHz, the transistor is also know for its low noise feature.

The BC546 has very low Continuous current of 100mA with a collector to emitter voltage of 65V, hence it cannot be used to switch heavy loads. So it can be used in places where the load current is less than 100mA.



Brief Description on BC546 Transistor

BC546 is a NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. It is a low current transistor hence the maximum amount of current that could flow through the Collector pin (Ic) is 100mA, hence we cannot connect loads that consume more than 100mA and load voltage more than 30V using this transistor. BC546 has a decent gain value hfe up to 800; this value determines the amplification capacity of the transistor.

When this transistor is fully biased then it can allow a maximum of 100mA to flow across the collector and emitter. This stage is called Saturation Region. When base current is removed the transistor becomes fully off, this stage is called as the Cut-off Region.



 Applications

  • High voltage, low noise amplifier designs
  • Switching small loads
  • Small signal amplifiers
  •  Darlington pair
  • Pre-amplifier circuits
  • Audio Noise filters



2D model of the component

If you are designing a PCD or Perf board with this component then the following picture from the BC546 Datasheet will be useful to know its package type and dimensions.

BC546 Transistor Dimensions
