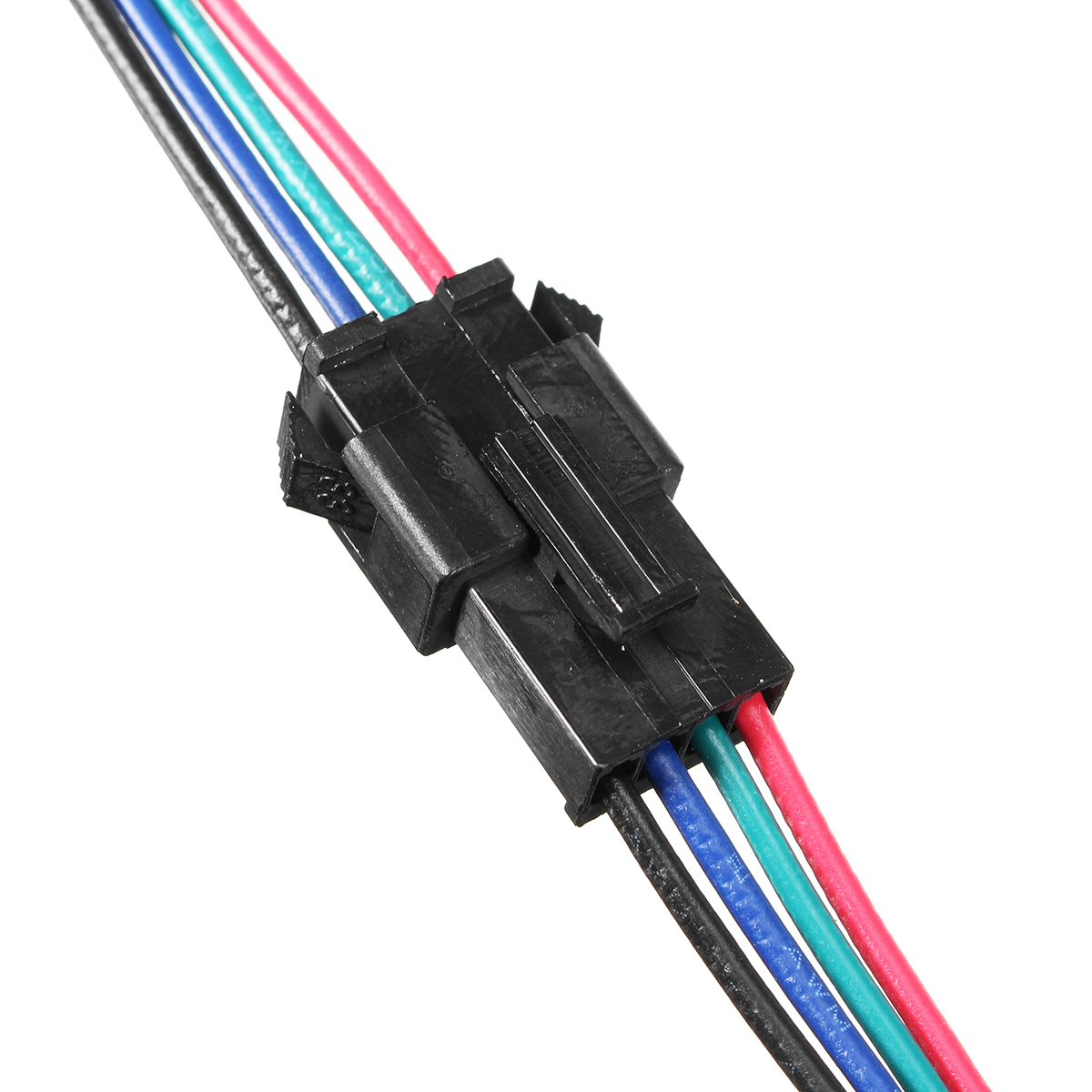

JST 2.54mm 4pin Connector plug Male and Female with 15cm Wires Cables
BD 1.500
2.54mm SM 4Pin 22 AWG Female Male Housing Connector Plug Wire 15cm Length
Specification :
Product name : male & female connector
Series : SM Connector
Pitch : 2.54mm
Position :4
Gender : Male & Female plug housing
Number of rows : 1
Applicable : 22 AWG
Wire length : Approx 150mm
End of wire material : solder bare wire
Voltage rating : 250V DC/AC
Current rating : 3.0A DC/AC
Temperature : -25 to +85°C
Withstand voltage : 500 VAC/minute (effective value)
Insulation resistance : ≥1500M Ω
Contact resistance : ≤0.02 Ω
Application : wire to wire connectors
Applicable panel thickness : 0.5 to 2.0mm
Product name : male & female connector
Series : SM Connector
Pitch : 2.54mm
Position :4
Gender : Male & Female plug housing
Number of rows : 1
Applicable : 22 AWG
Wire length : Approx 150mm
End of wire material : solder bare wire
Voltage rating : 250V DC/AC
Current rating : 3.0A DC/AC
Temperature : -25 to +85°C
Withstand voltage : 500 VAC/minute (effective value)
Insulation resistance : ≥1500M Ω
Contact resistance : ≤0.02 Ω
Application : wire to wire connectors
Applicable panel thickness : 0.5 to 2.0mm
Choose Quantity
