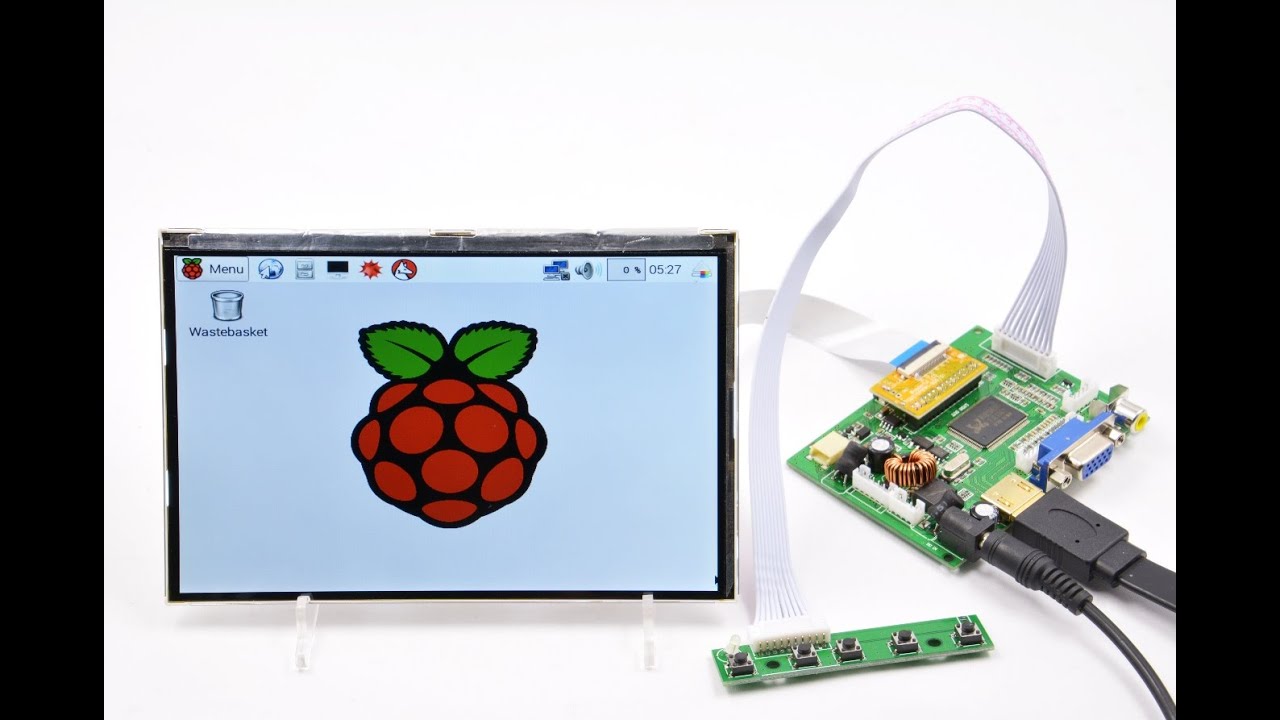

7 inch IPS Display Kit for Raspberry Pi, Raspberry Pi Touchscreen
Non-returnable
BD 58.500
Out of stock
Kit contents: 7 ”Touchscreen display adapter board dsi ribbon cable 4 x stand-offs and screws 4 x jumper wires technical Specifications 7” Touchscreen display. Screen Dimensions: 194mm x 110mm x 20mm (including standoffs) viewable screen size: 155mm x 86mm Screen resolution 800 x 480 pixels 10 finger capacitive touch Connects to the Raspberry Pi board Using a ribbon cable connected to the dsi port. Adapter board is used to power the display and convert the parallel signals from the display to the serial (dsi) port on the Raspberry Pi. Latest version of Raspbian OS required to operate correctly. Note: The display works with all existing Raspberry Pi models, however the mounting holes only Line up with the newer board design of the a +, b + and Pi 2.
Product Details
Feature:
- (Pixel), IPS screen; Full view
- Compatible with Raspberry Pi 3 Model B/ 2B/ B+ (Provide full image or separate driver)
- For Raspberry Pi, you can run Raspbian and Ubuntu(only provide the image for Pi 3B/2B)
- Compatible with BeagleBone Black and Banana Pi/Pro;(Provide a full image)
- USB touch and HDMI display don't occupy any GPIO
- Support win7/win8/win10, No driver
-
max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0
Note: No Raspberry Pi / Banana Pi main board included!!!
Note: No Raspberry Pi / Banana Pi main board included!!!
