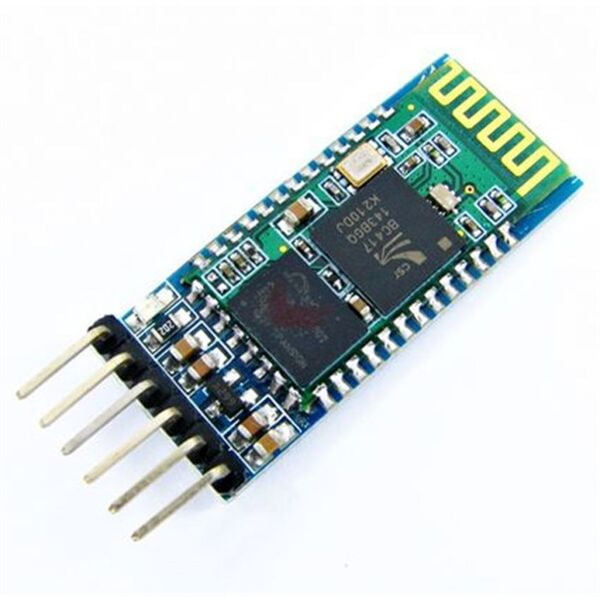

HC-05 Bluetooth Module
Non-returnable
BD 6.900
HC 05 HC-05 HC05 Bluetooth Module in Pakistan in Pakistan module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup.Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature). It has the footprint as small as 12.7mmx27mm. Hope it will simplify your overall design/development cycle.
HC-05 Technical Specifications
- Serial Bluetooth module for Arduino and other microcontrollers
- Operating Voltage: 4V to 6V (Typically +5V)
- Operating Current: 30mA
- Range: <100m
- Works with Serial communication (USART) and TTL compatible
- Follows IEEE 802.15.1 standardized protocol
- Uses Frequency-Hopping Spread spectrum (FHSS)
- Can operate in Master, Slave or Master/Slave mode
- Can be easily interfaced with Laptop or Mobile phones with Bluetooth
- Supported baud rate: 9600,19200,38400,57600,115200,230400,460800.
Choose Quantity
Product Details
- Power supply: 3.6 V to 6 V connected to the VCC pin
- Communication leads work with 3.3 V (tolerate 5 V)
- Power consumption: approx. 50 mA
- Class 2 - transmitter power max. + 4 dBm
- Range: up to 10 m
- Password for pairing: 1234
- Standard: Bluetooth 2.0 + EDR
- SPP profile with settings via AT commands
- Communication: UART (RX, TX)
- Small dimensions: 37 x 16 mm
